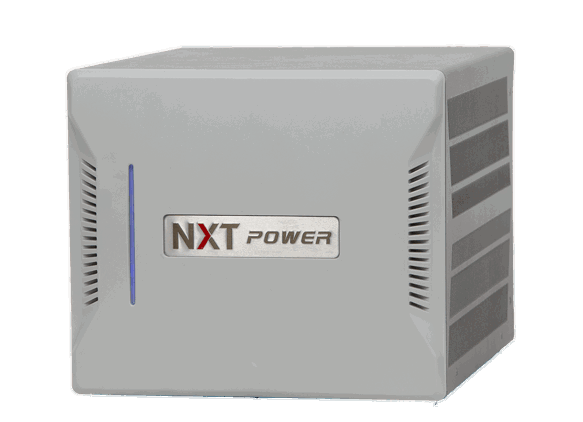

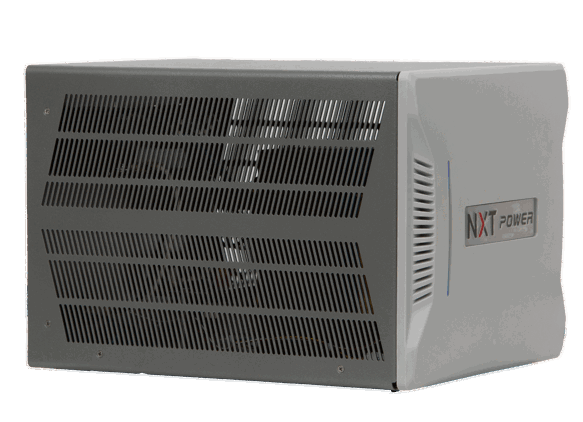

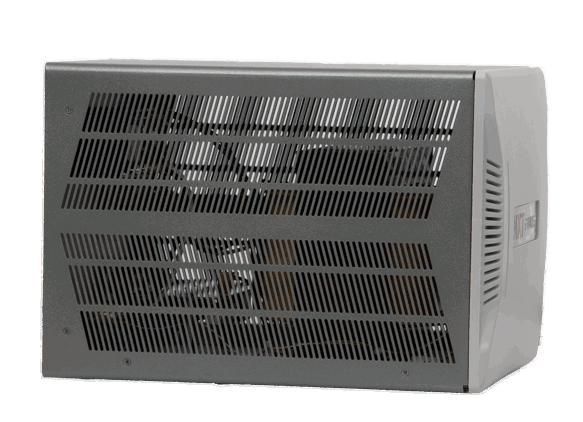

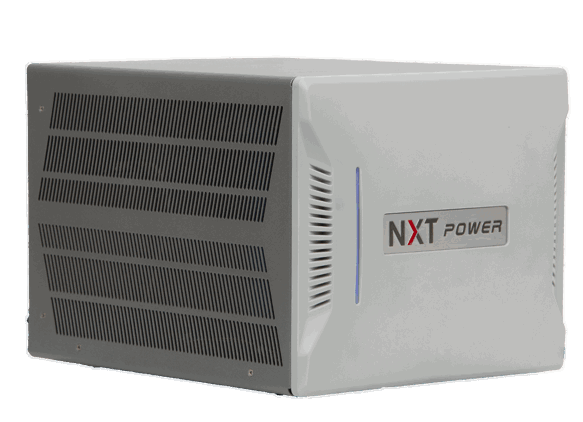

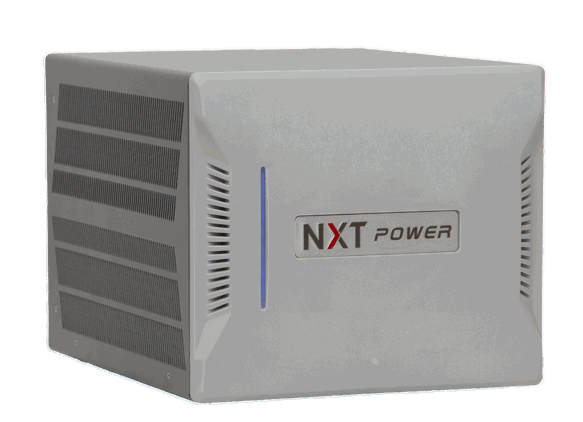

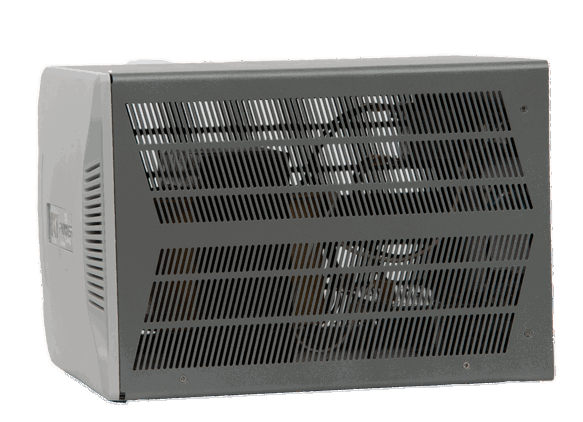

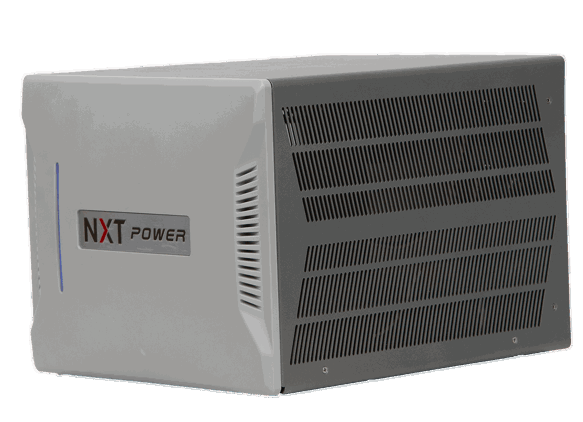

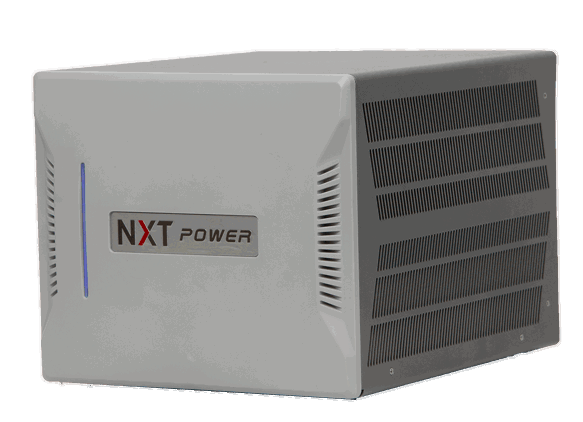

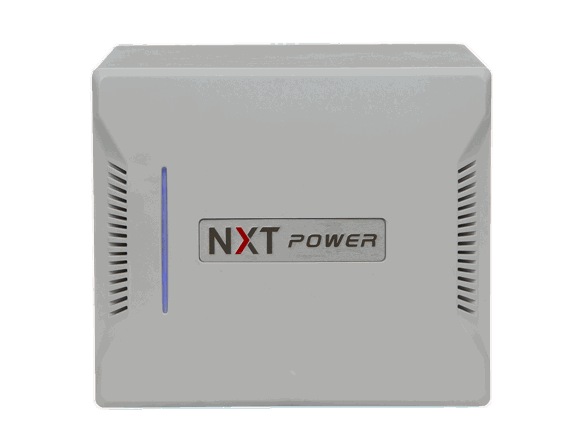

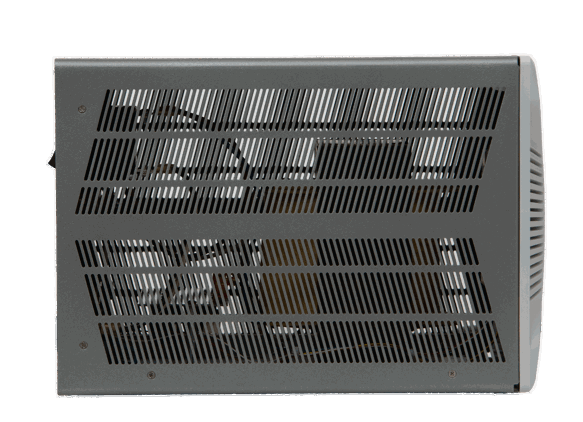

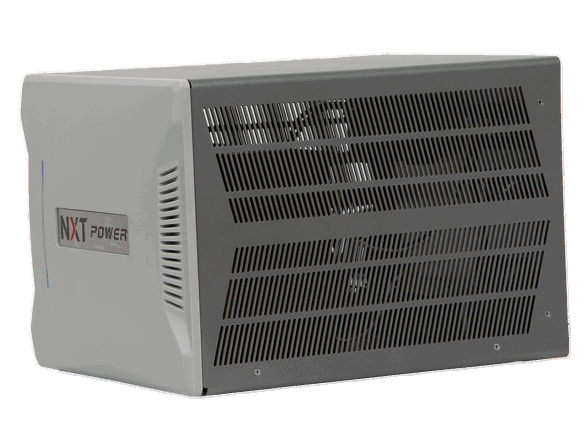

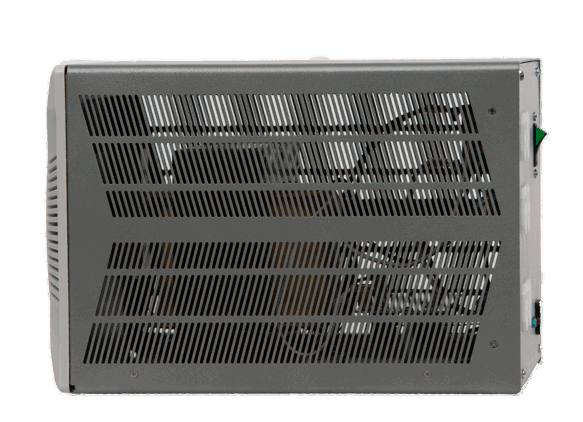

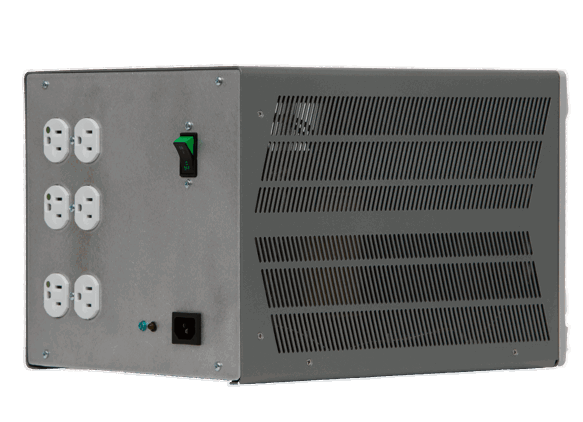

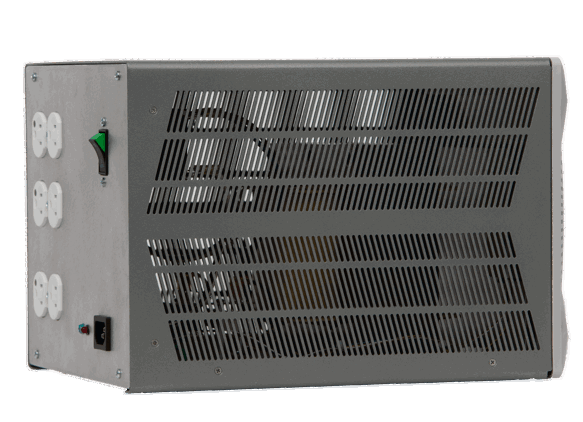

Integrity Medical 1200-2000 VA Model
Power Quality You Can Rely On
The Integrity Medical 1200-2000 VA power conditioner brings the cleanest and most reliable power available to hospitals and medical facilities to keep electronic equipment like patient monitors, diagnostic equipment, ultrasound equipment, and other microprocessor-based devices at peak performance at all times.
Adheres IEC60601 and UL60601 safety requirements.
Integrity Medical 1200-2000 VA Model North American Specs
| Model # | Input Voltage AC~ | Output Voltage AC~ | Maximum Load Rating (AMPS) | Maximum Power (VA) | Frequency (HZ) | Case Size (IN) | Ship Weight (LBS) |
|---|---|---|---|---|---|---|---|
| NPT1200-M-N | 120 | 120 | 10.0 | 1200 | 60 | 9.25 x 10.5 x 12.75 | 35 |
| NPT1500-M-N | 120 | 120 | 12.0 | 1440 | 60 | 9.25 x 10.5 x 12.75 | 42 |
| NPT2000-M-N | 120 | 120 | 16.0 | 1920 | 60 | 9.25 x 10.5 x 12.75 | 50 |
Integrity Medical 1200-2000 VA Model International Specs
| Model # | Input Voltage AC~ | Output Voltage AC~ | Maximum Load Rating (AMPS) | Maximum Power (VA) | Frequency (HZ) | Case Size (CM) | Ship Weight (KG) |
|---|---|---|---|---|---|---|---|
| NPT1200-M-i | 200-240 | 200-240 | 5.4 | 1200 | 50/60 | 23.49 x 26.67 x 32.38 | 15.42 |
| NPT1500-M-i | 200-240 | 200-240 | 6.5 | 1500 | 50/60 | 23.49 x 26.67 x 32.38 | 17.69 |
| NPT2000-M-i | 200-240 | 200-240 | 8.5 | 2000 | 50/60 | 23.49 x 26.67 x 32.38 | 22.22 |
Clean & Continuous Power for the Medical Industry
Each medical instrument has special power protection needs. Our Integrity Medical 1200-2000 VA power conditioners provide reliable, clean, and fully conditioned power to the medical equipment that hospitals rely on every day to keep patients safe and computer systems protected.
- Let through voltage is less than 10 volts normal mode and less than 0.5 volts neutral-to-ground when tested to ANSI/IEEE C62.41.
- The leakage current is less than 300 μA.

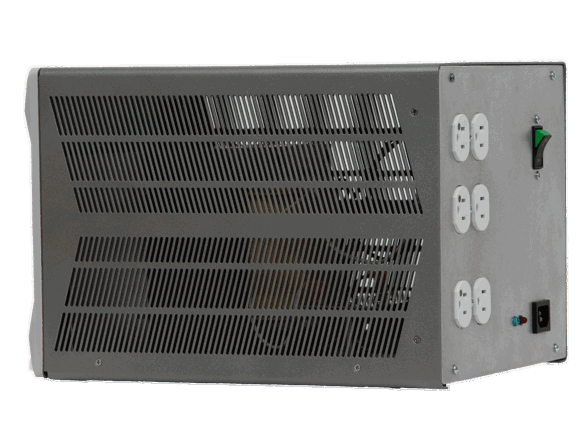

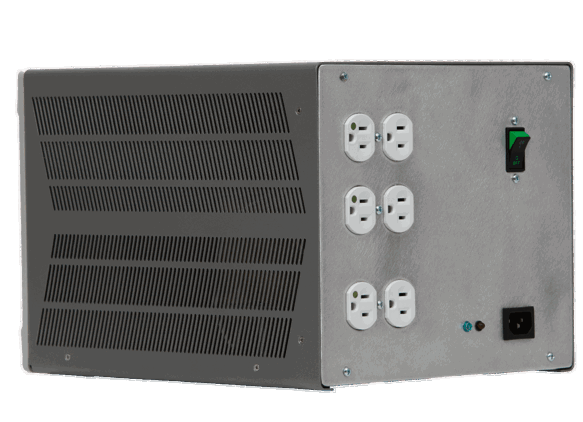

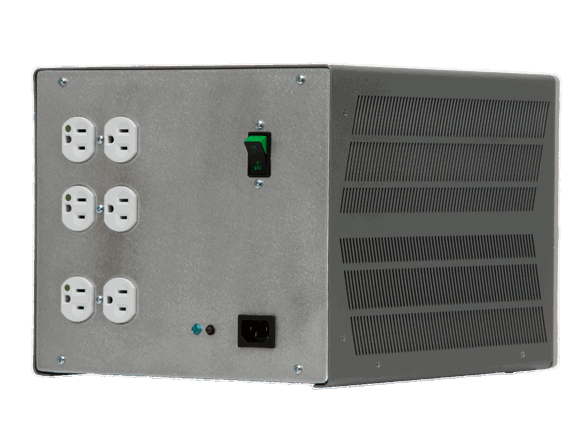

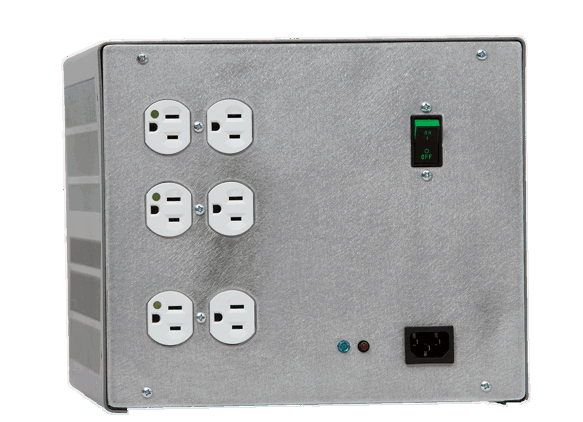

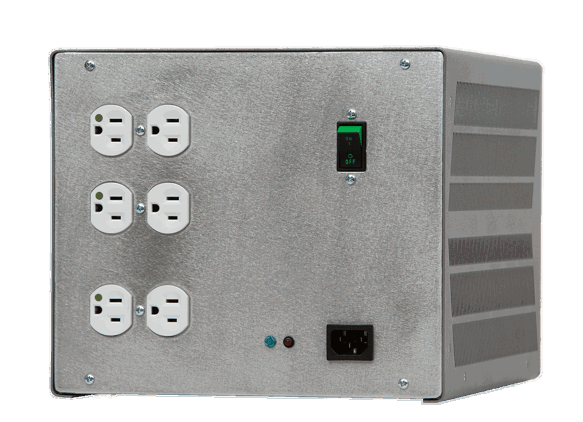

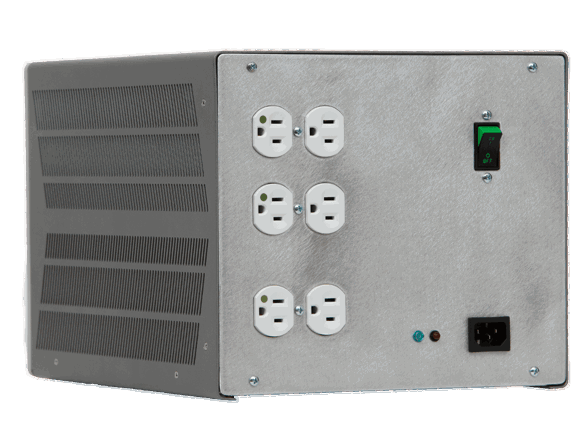

- All North American models offer hospital-grade plugs and receptacles.
- Conforms to UL60601 and IEC60601 safety requirements
- Includes NXT Power 5-year warrant.
Product Documentation
- Integrity Medical Fact Sheet (PDF)
- Integrity Medical User Manual (PDF)
- Integrity Medical 1200-2000 VA Domestic Technical Specifications (PDF)
- Integrity Medical International Technical Specifications (PDF)
- Wall Mount Dimensions (PDF)
- Warranty (PDF)
- Quality Policy Certificate (PDF)
- International Medical Certificate (PDF)
Product Support
Industries & Applications
Designed for use in medical, clinical, and scientific settings, the 1200-2000 VA Model can provide clean and stable power to patient monitors, diagnostic equipment, ultrasound equipment, and other microprocessor-based devices that must meet IEC60601 and UL60601 standards.
Elevate Your Power Quality Game
Learn how you can help your medical-based customers ensure uninterrupted uptime for their critical electronic equipment. Contact the NXT Power team today.
