Integrity 80-480 VA Model North American Specs
|Model #||Input Voltage AC~||Output Voltage AC~||Maximum Load Rating (AMPS)||Maximum Power (VA)||Frequency (HZ)||Case Size (IN)||Ship Weight (LBS)|
|NPT80-N||120||120||0.70||80||60||4.3 x 5.25 x 8.0||7|
|NPT120-N||120||120||1.0||120||60||4.3 x 5.25 x 8.0||8|
|NPT180-N||120||120||1.5||180||60||4.3 x 5.25 x 8.0||8|
|NPT240-N||120||120||2.0||240||60||4.3 x 5.25 x 8.0||11|
|NPT360-N||120||120||3.0||360||60||4.3 x 5.25 x 8.0||13|
|NPT480-N||120||120||4.0||480||60||4.3 x 5.25 x 8.0||15|
Integrity 80-480 VA Model International Specs
|Model #||Input Voltage AC~||Output Voltage AC~||Maximum Load Rating (AMPS)||Maximum Power (VA)||Frequency (HZ)||Case Size (CM)||Ship Weight (KG)|
|NPT80-i||200-240||200-240||0.35||80||50/60||10.92 x 13.33 x 20.32||3.62|
|NPT240-i||200-240||200-240||1.0||240||50/60||10.92 x 13.33 x 20.32||4.98|
|NPT480-i||200-240||200-240||2.0||480||50/60||16.51 x 17.78 x 24.76||8.16|
For Microprocessor-Based Devices & Electronic Systems

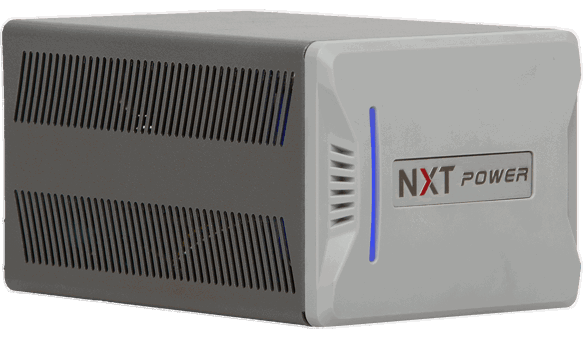

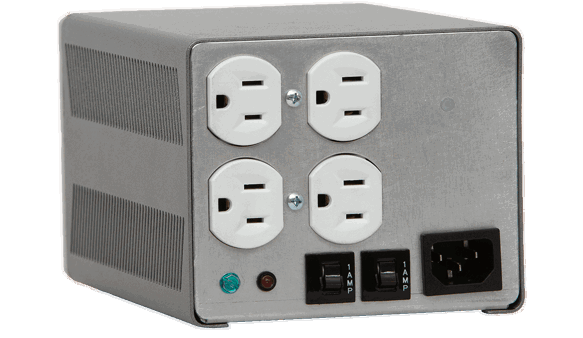

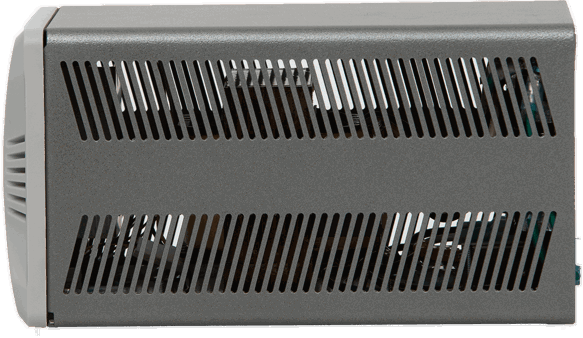

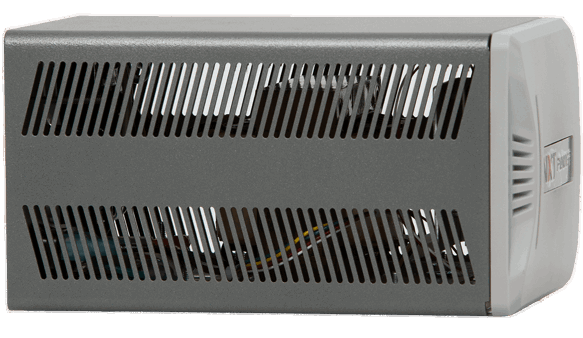

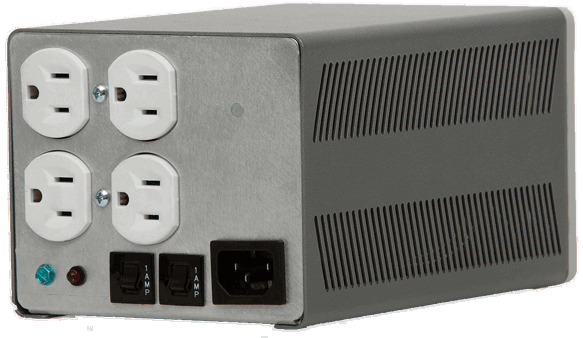

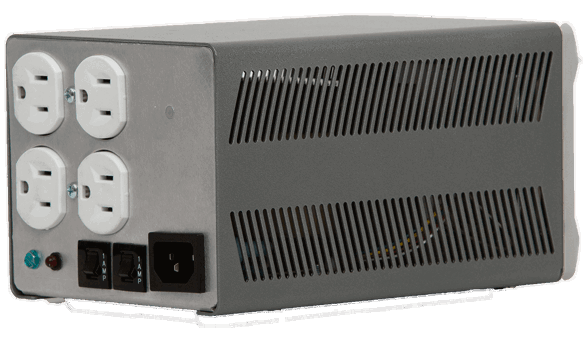

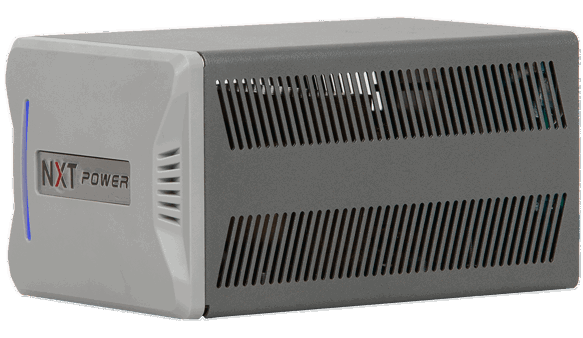

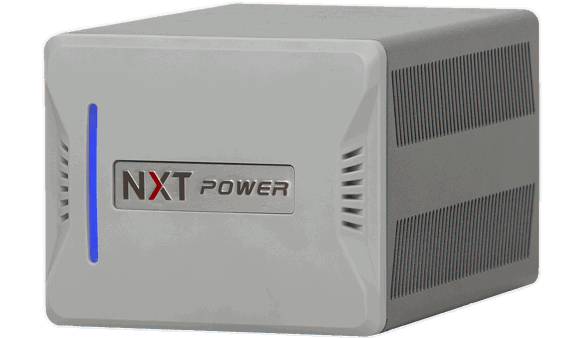

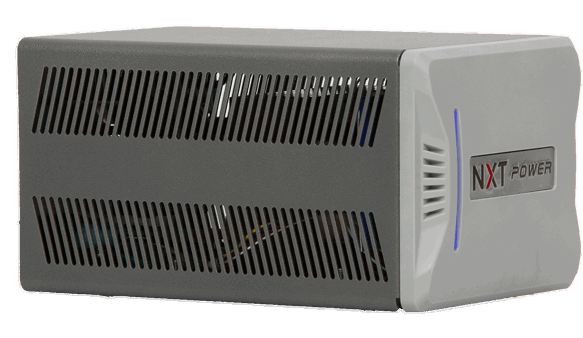

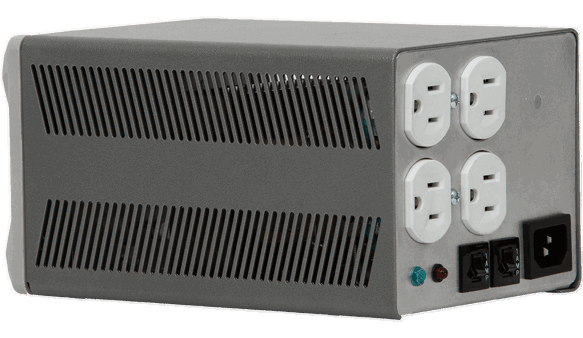

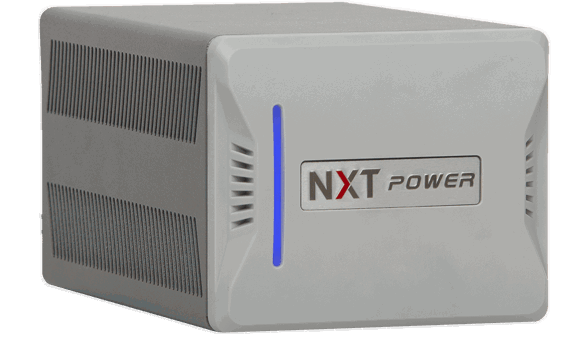

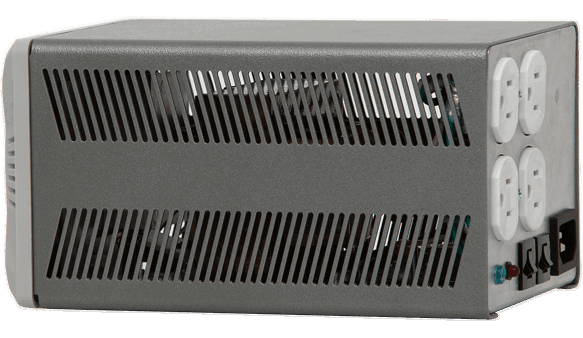

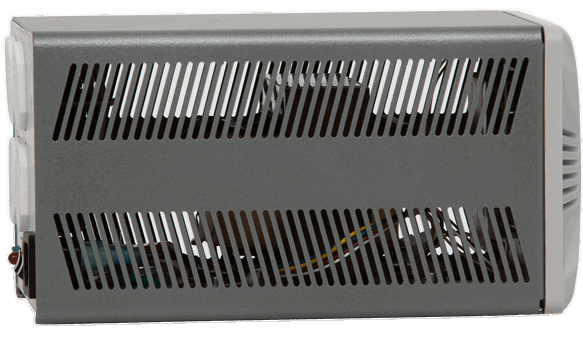

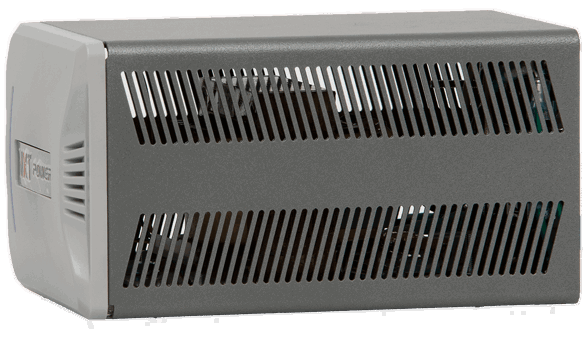

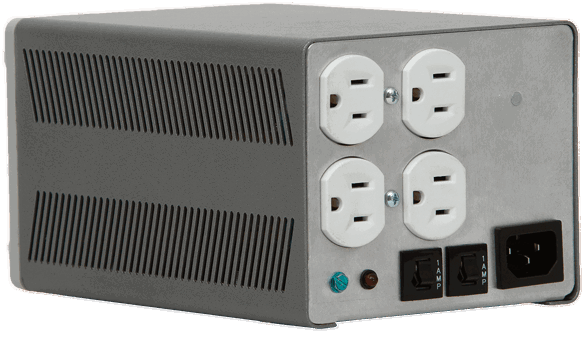

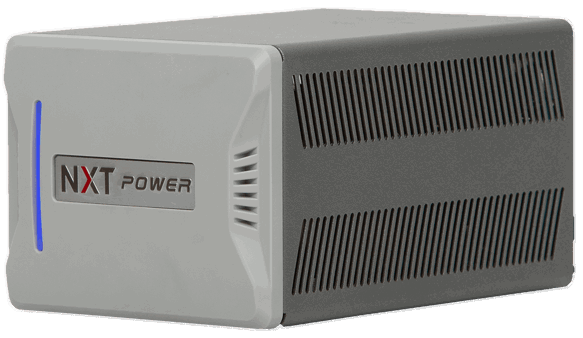

Integrity Standard power conditioners protect sensitive electronic equipment from hardware damage and prevent operational disruption due to common power problems.
The Integrity series combines surge diversion with a highly effective low-impedance isolation transformer and noise filtering to bring you the cleanest and most conditioned power available. This device allows fewer than 10 volts to pass through the device in normal mode and less than 0.5 volts neutral-to-ground when tested to ANSI/IEEE C62.41, category A & B.
Every NXT Power 80-480 VA “INTEGRITY” power conditioner has “NXT GROUND” integrated within each unit and combines surge diversion with a highly effective low impedance isolation transformer and noise filtering. NXT GROUND provides networked systems with benefits beyond traditional power conditioners by eliminating ground loops that cause system lock-ups.
Includes NXT Power 5-year warranty.
- Integrity Standard Sell Sheet (PDF)
- NXT Ground Technology Sell Sheet (PDF)
- Integrity Standard User Manual (PDF)
- Integrity Standard Domestic Technical Specifications (PDF)
- Integrity Standard International Technical Specifications (PDF)
- Wall Mount Dimensions (PDF)
- Warranty (PDF)
- Quality Policy Certificate (PDF)
Industries & Applications
Use the 80-480 VA Model to power microprocessor-based electronic devices, such as analyzers, ATMs, small instrumentation devices, point-of-sale systems, and other low-voltage electronics in retail, restaurant, and small-business settings.
