Integrity Medical 80-480 VA Model

Power Quality You Can Rely On.

The Integrity Medical power conditioner offers unparalleled protection for equipment and instrumentation in medical settings. The 80-480 VA Model is ideal for lower-power devices and microprocessor-based medical equipment. Meets IEC60601 and UL60601 safety requirements.

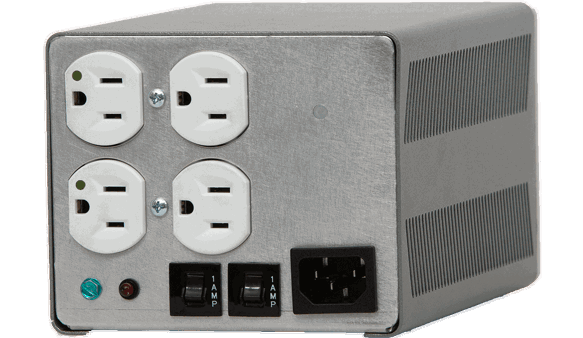

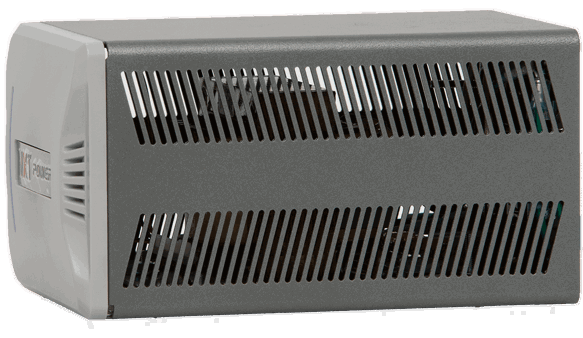

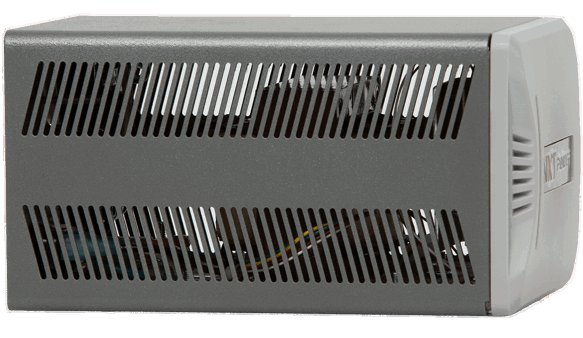

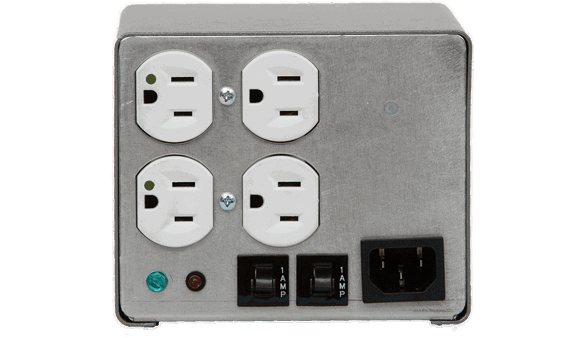

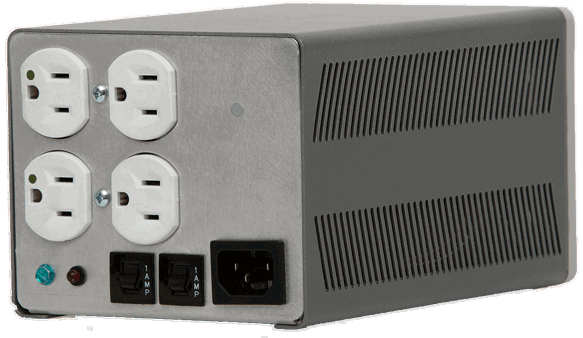

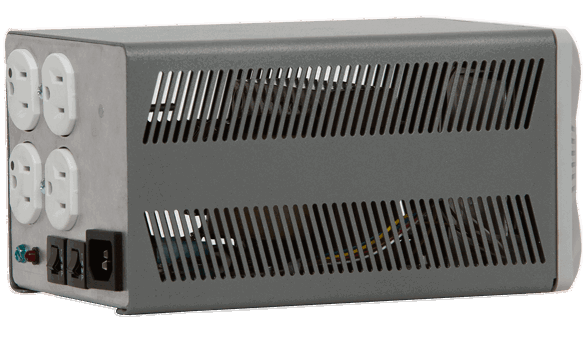

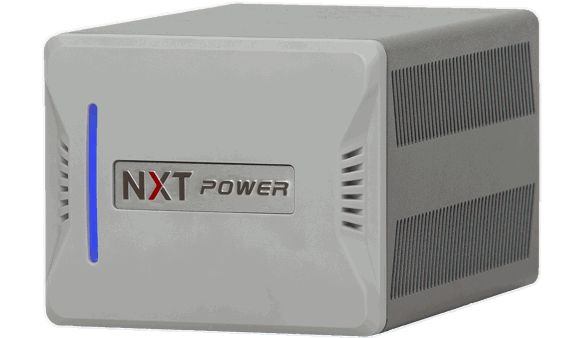

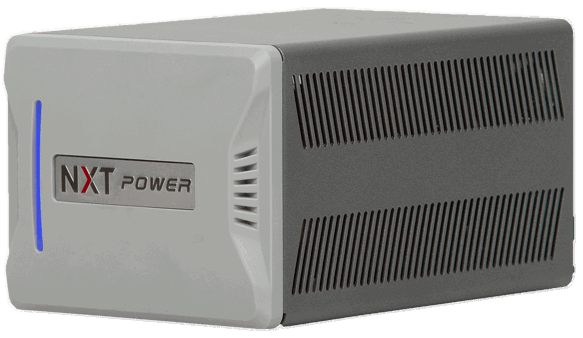

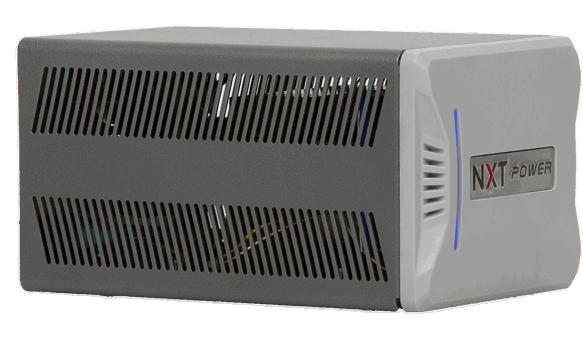

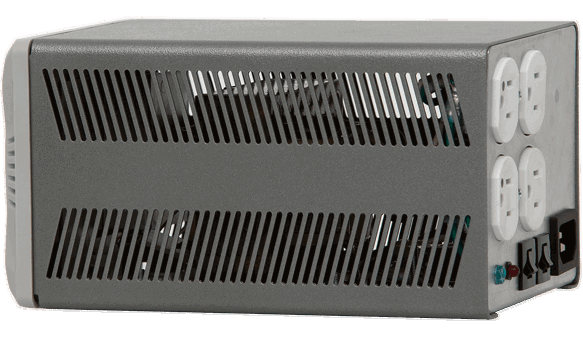

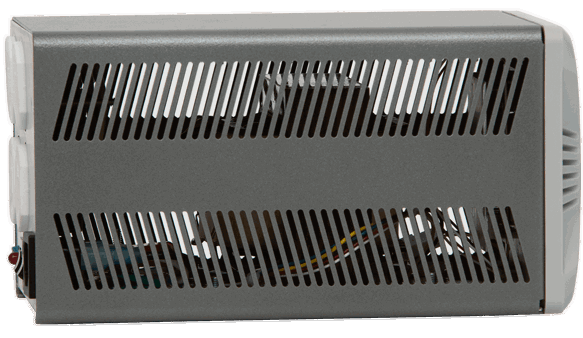

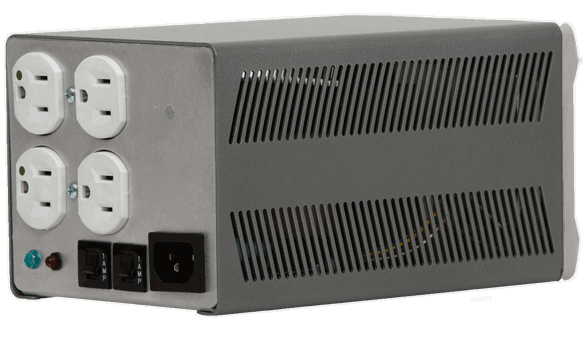

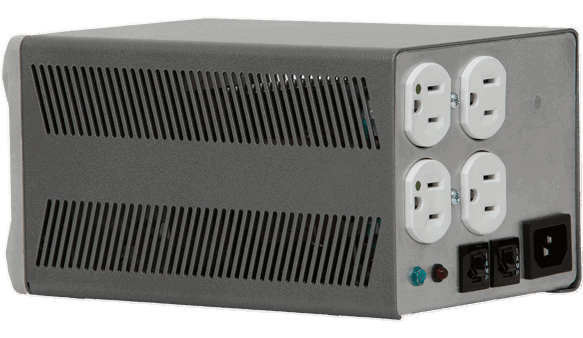

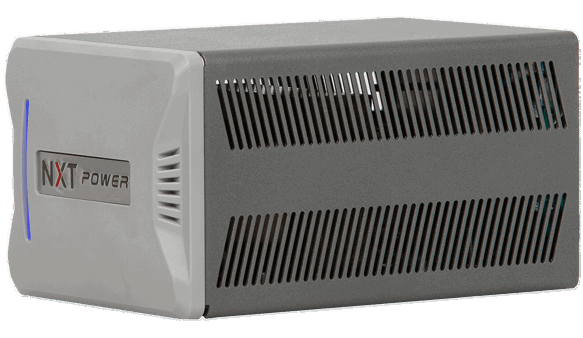

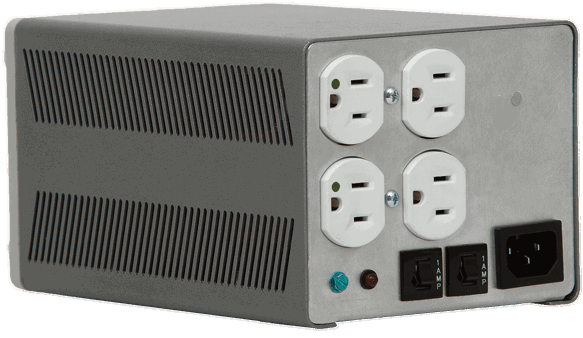

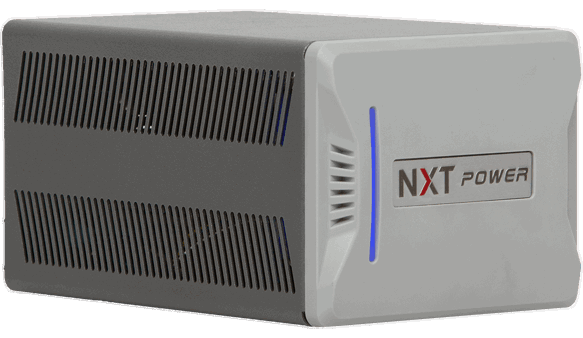

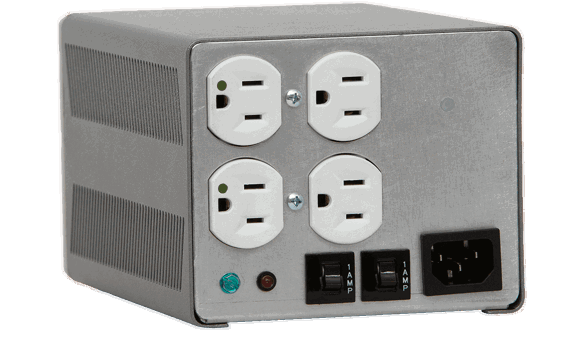

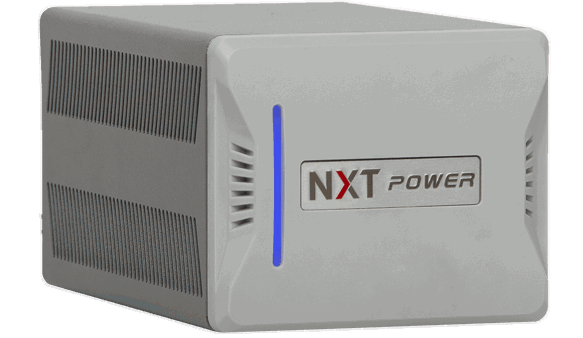

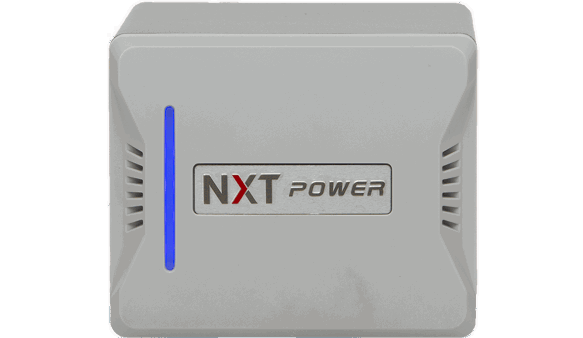

NXT Power Integrity Medical Power Conditioner NXT Power Integrity Medical Power Conditioner NXT Power Integrity Medical Power Conditioner NXT Power Integrity Medical Power Conditioner NXT Power Integrity Medical Power Conditioner Side View - NXT Power Integrity Medical Power Conditioner Side and Back View - NXT Power Integrity Medical Power Conditioner Side and Back View - NXT Power Integrity Medical Power Conditioner Back View - NXT Power Integrity Medical Power Conditioner Back View - NXT Power Integrity Medical Power Conditioner Back View - NXT Power Integrity Medical Power Conditioner Back View - NXT Power Integrity Medical Power Conditioner Side and Back View - NXT Power Integrity Medical Power Conditioner Side and Back View - NXT Power Integrity Medical Power Conditioner Side View - NXT Power Integrity Medical Power Conditioner Side View - NXT Power Integrity Medical Power Conditioner NXT Power Integrity Medical Power Conditioner NXT Power Integrity Medical Power Conditioner NXT Power Integrity Medical Power Conditioner
Slide left and right to view different angles.

Integrity Medical 80-480 VA Model North American Specs

Model # Input Voltage AC~ Output Voltage AC~ Maximum Load Rating (AMPS) Maximum Power (VA) Frequency (HZ) Case Size (IN) Ship Weight (LBS)
NPT240-M-N 120 120 2.0 240 60 4.3 x 5.25 x 8.0 12
NPT360-M-N 120 120 3.0 360 60 4.3 x 5.25 x 8.0 14
NPT480-M-N 120 120 4.0 480 60 4.3 x 5.25 x 8.0 16

Integrity Medical 80-480 VA Model International Specs

Model # Input Voltage AC~ Output Voltage AC~ Maximum Load Rating (AMPS) Maximum Power (VA) Frequency (HZ) Case Size (CM) Ship Weight (KG)
NPT480-M-i 200-240 200-240 2.0 480 50/60 16.51 x 17.78 x 24.76 8.16
NPT780-M-i 200-240 200-240 3.25 780 50/60 16.51 x 17.78 x 24.76 12.24
NPT1000-M-i 200-240 200-240 4.10 1000 50/60 16.51 x 17.78 x 24.76 14.06
NPT1200-M-i 200-240 200-240 5.4 1200 50/60 23.49 x 26.67 x 32.38 15.42
NPT1500-M-i 200-240 200-240 6.5 1500 50/60 23.49 x 26.67 x 32.38 17.69
NPT2000-M-i 200-240 200-240 8.5 2000 50/60 23.49 x 26.67 x 32.38 22.22

Clean & Reliable Power for Medical Settings

Integrity Medical power conditioners prevent critical medical and patient equipment from common-mode voltage and other power problems. Each model incorporates a low impedance isolation transformer, surge diverter, and power line filter to prevent noise, spikes, and transients before they can damage or degrade equipment.

  • Let through voltage is less than 10 volts normal mode and less than 0.5 volts neutral-to-ground when tested to ANSI/IEEE C62.41.
  • Leakage current is less than 300 μA.
  • All North American models offer hospital-grade plugs and receptacles.
  • Conforms to UL60601 and IEC60601 safety requirements
  • Includes NXT Power 5-year warranty

Industries & Applications

The Integrity Medical 80-480 VA Model is perfect for lower-power devices and microprocessor-based medical equipment. This model meets IEC60601 and UL60601 safety requirements.
