Vanguard 3-Phase UPS 10 & 20 kVA LT Line
Power You Can Count On...When It Matters Most)
The NXT Power Vanguard LT 10 & 20kVA 3-Phase UPS delivers true online double-conversion power protection for mission-critical applications. Designed for demanding environments, it provides clean, uninterrupted power with exceptional efficiency, durability, and reliability.
Ensuring maximum uptime when it matters most.

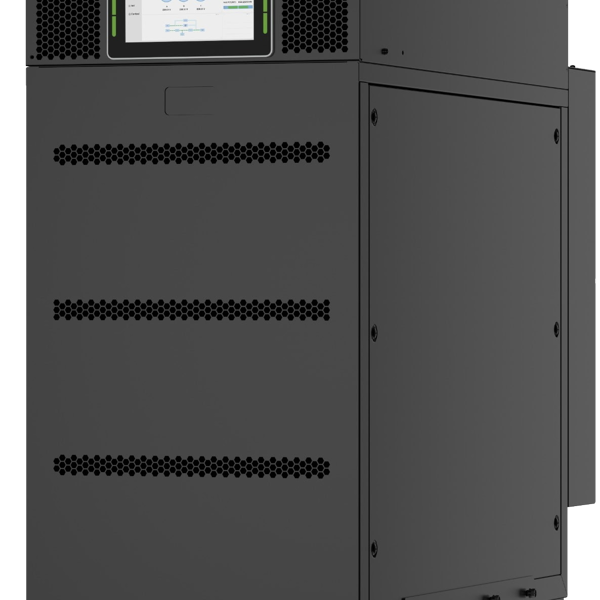

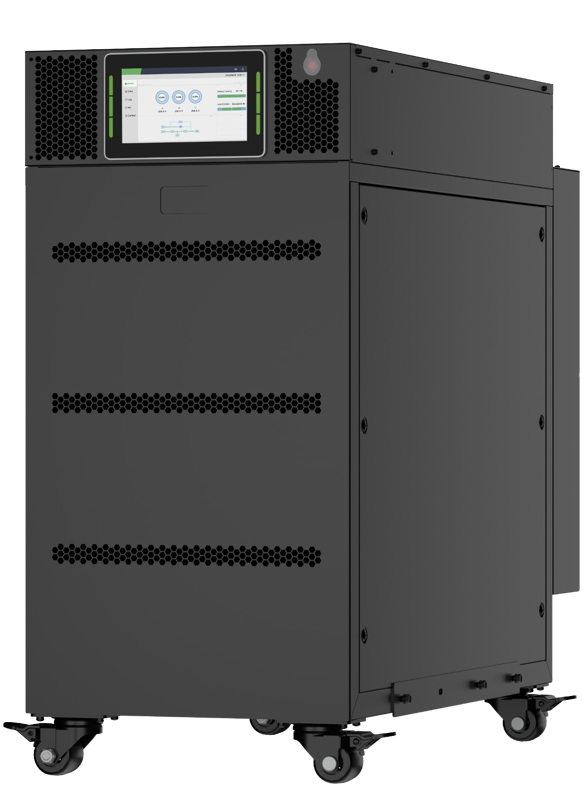

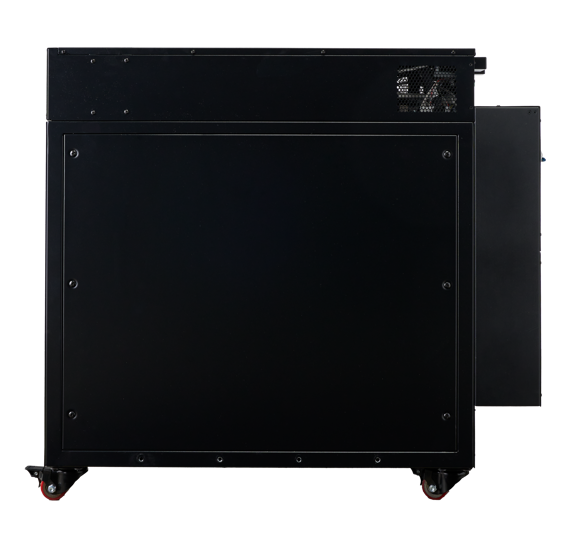

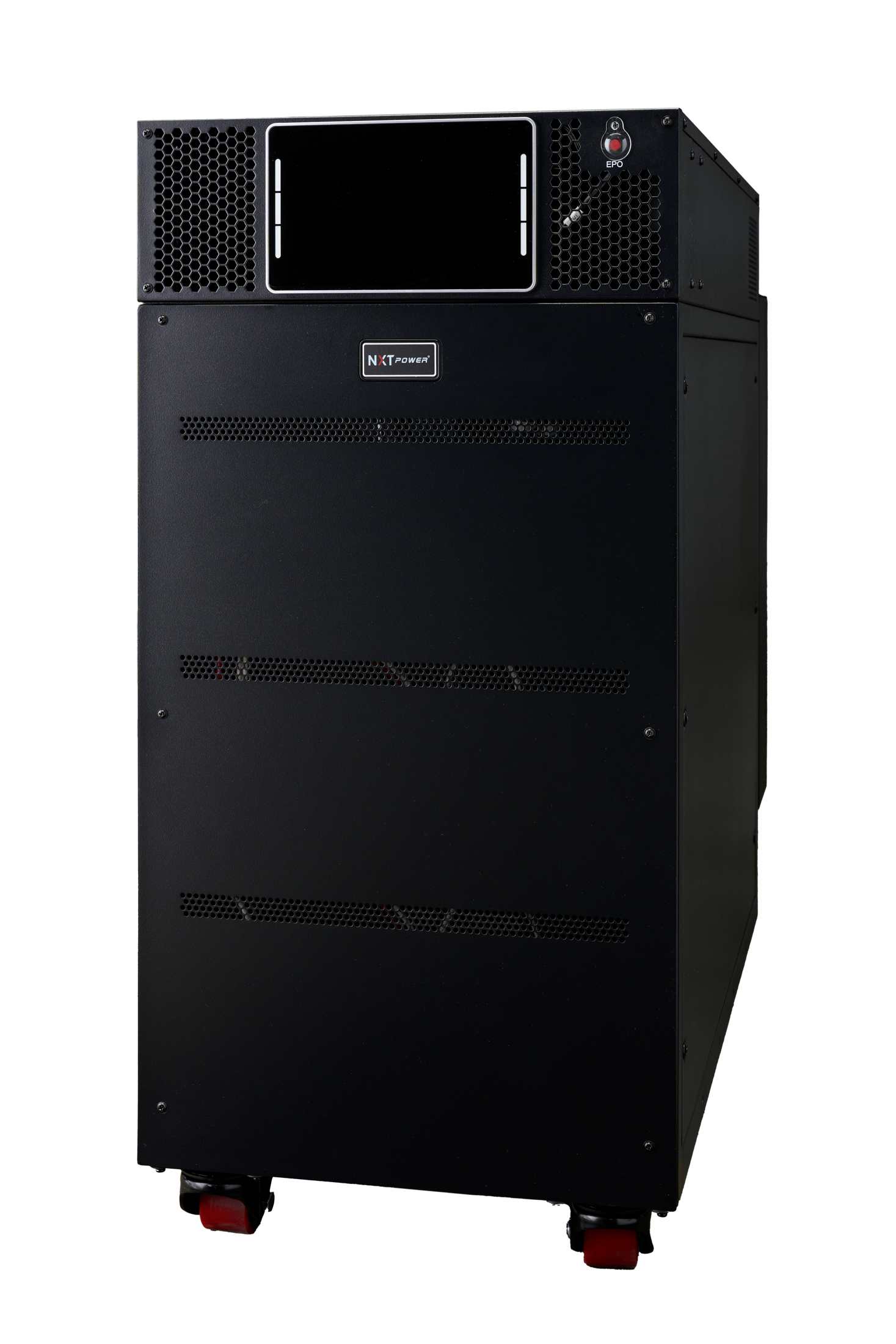

(Render of Vanguard LT 10 & 20 kVA)
Vanguard 3-Phase UPS 10 & 20 kVA LT Line North American Specs
| Model # | Input Voltage AC~ | Output Voltage AC~ | Maximum Load Rating (AMPS) | Maximum Power (VA) | Frequency (HZ) | Case Size (IN) | Ship Weight (LBS) |
|---|---|---|---|---|---|---|---|
| NPU 10.0 | 208V 3 Phase | 200/208/220 | 28 | 10,000 | 50/60 | 10.23 x 33.46 x 35.00 | 76 w/o Batteries |
| NPU 20.0 | 208V 3 Phase | 200/208/220 | 55 | 20,000 | 50/60 | 16.14 x 33.46 x 38.40 | 115 w/o Batteries |
Balanced Efficient Industrial Power
The Vanguard LT 10 & 20kva 3-Phase UPS is engineered to support critical systems that demand high inrush current capability and high crest factor performance. Designed for demanding environments, it delivers reliable, continuous power to protect essential equipment and maintain stable operation for mission-critical applications.
With low input THDi and a high input power factor, the Vanguard LT helps reduce installation requirements and infrastructure costs, while its high-efficiency design minimizes ongoing operating expenses. Built using advanced manufacturing techniques and premium-quality components, the system offers exceptional durability, reliability, and long-term performance.
To simplify deployment, the Vanguard LT 3-Phase UPS includes an integrated battery system, eliminating the need for an external battery cabinet while providing dependable backup power during outages. Built-in monitoring and automatic voltage regulation help keep your systems running when it matters most.
Key Features
-

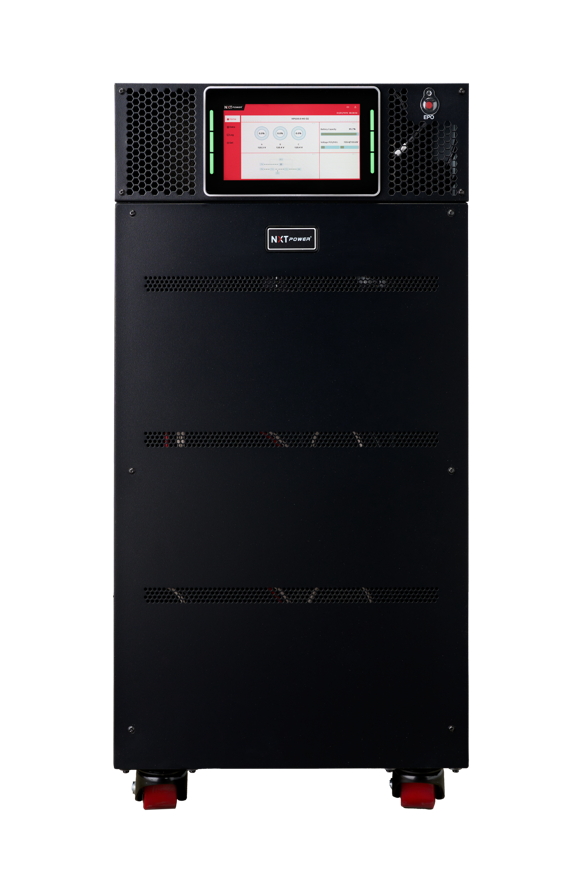

Advanced LCD Touchscreen Operation Interface
-
High Input Power Factor >0.99 and Output Power Factor 1.0
-
Three-Level IGBT Technology for improved efficiency and performance
-
Built-in High-Current Battery Charger
-
Integrated Internal Battery System (no external battery cabinet required)
-
Flexible Battery Configuration Options
-
cTUVus Listed
-
DC Start Capability Available
-
Strong Overload Capacity
-
OSHPD / HCAi Listed*
-
Includes NXT Power 2-Year Warranty
Industries & Applications
The NXT Power Vanguard LT10 & 20kVA 3-Phase UPS systems are designed to support the demanding power requirements of mission-critical loads. They are an ideal solution for environments such as laboratories, lab automation systems and light industrial operations.
Get the Most Reliable Power on the Market
Are you ready to elevate your power quality game? Contact our sales team today to learn how you can get a next-generation power conditioner for your business.
