Integrity Single-Phase 2-7 kVA Model

The Cleanest Power Available.

With models ranging from 2-7 kVA, the Single-Phase power conditioner is ideal for small or mid-range computer systems, mass spectrometers, analytical instrumentation, and other critical electronic systems. This model provides clean power at 208 or 240 VAC input and 208/240/120 VAC output for loads up to 29 amps.

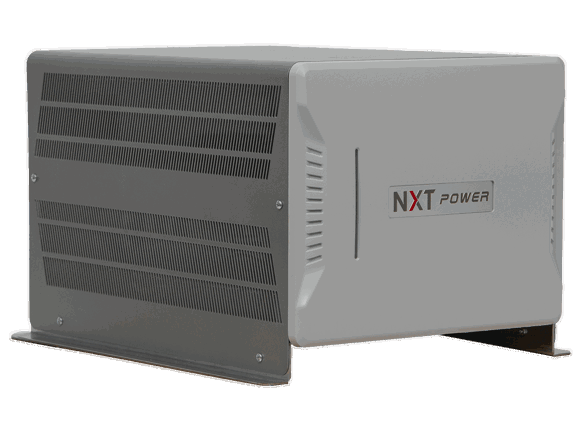

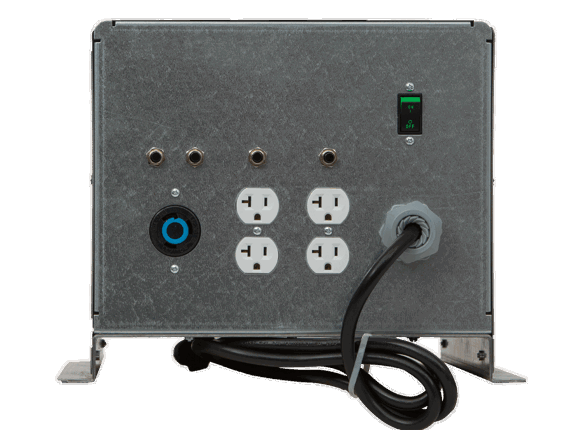

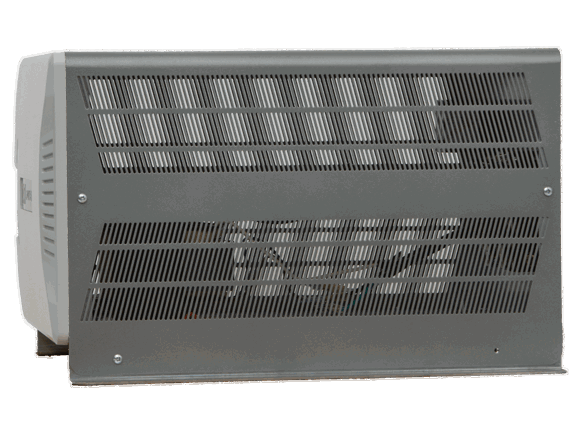

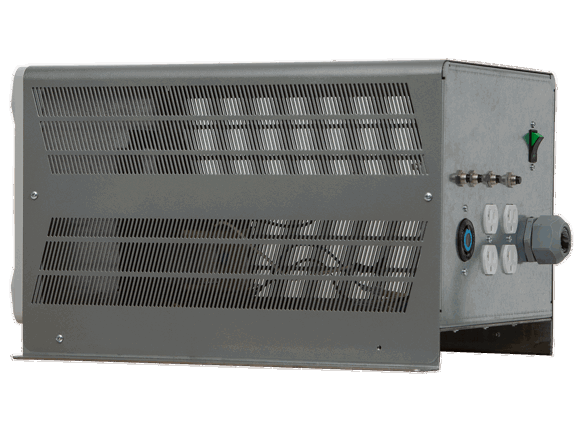

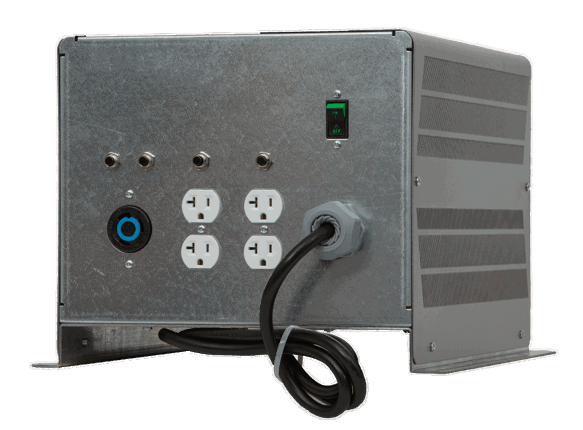

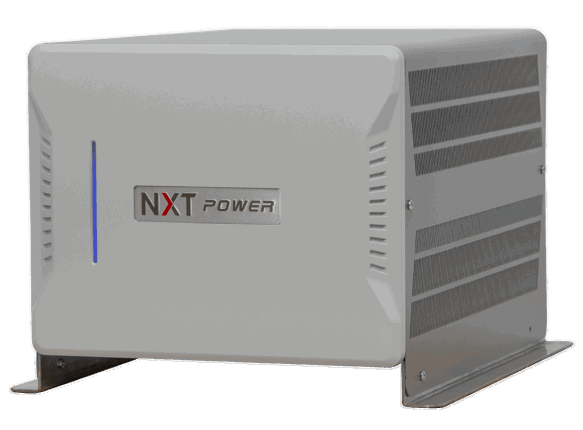

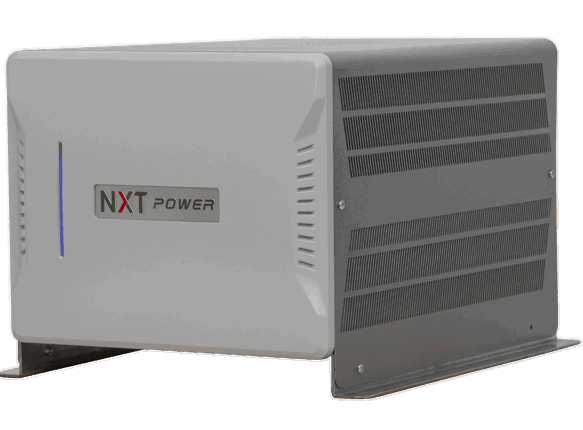

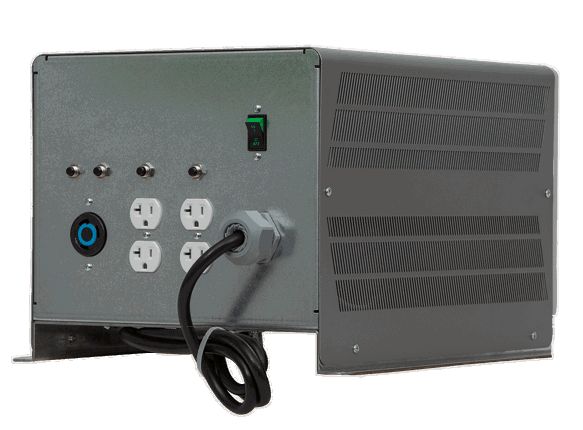

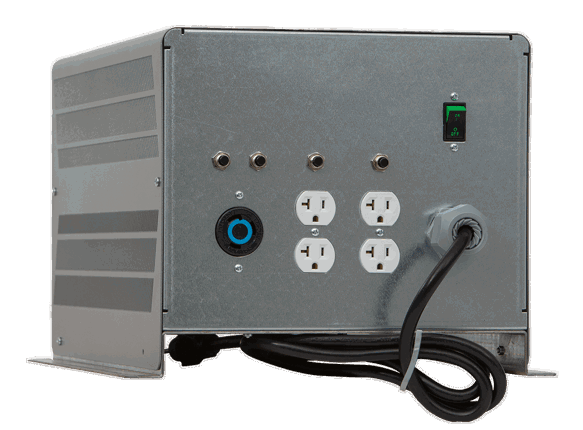

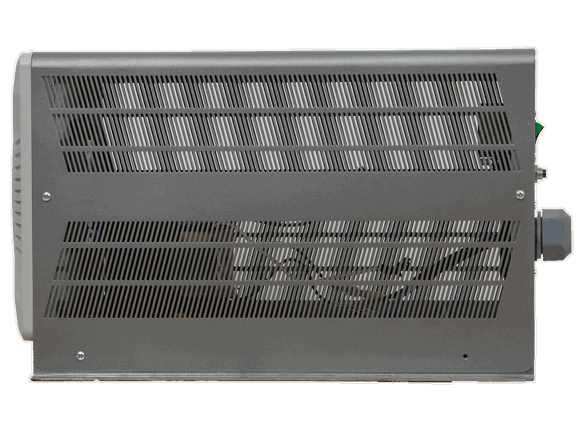

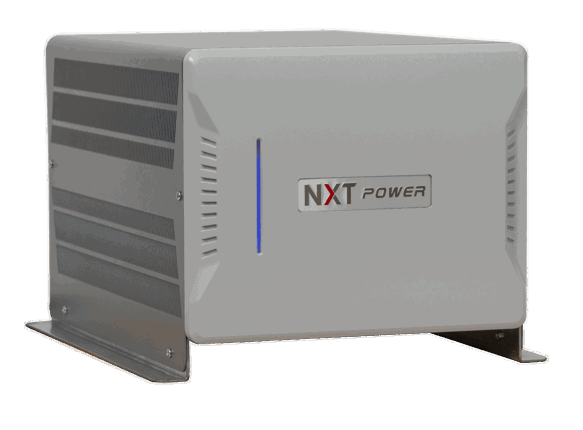

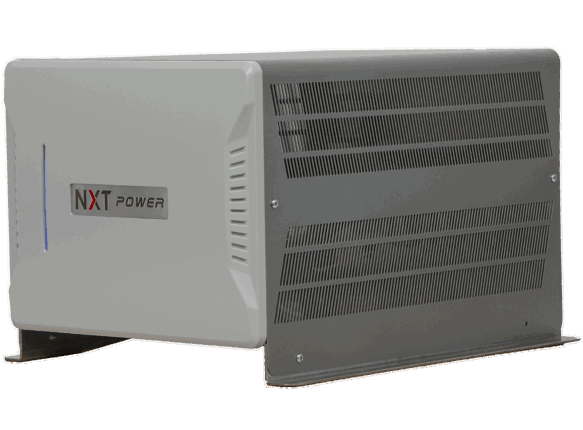

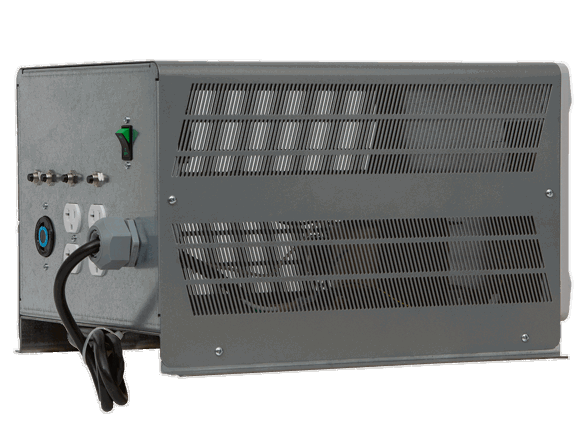

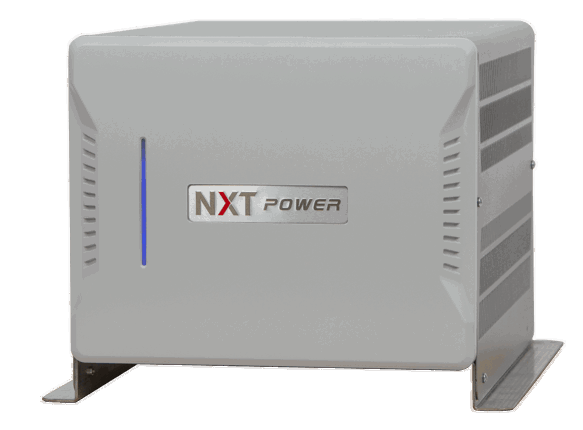

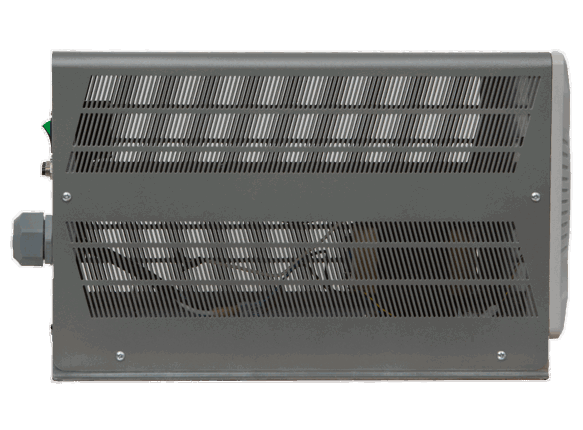

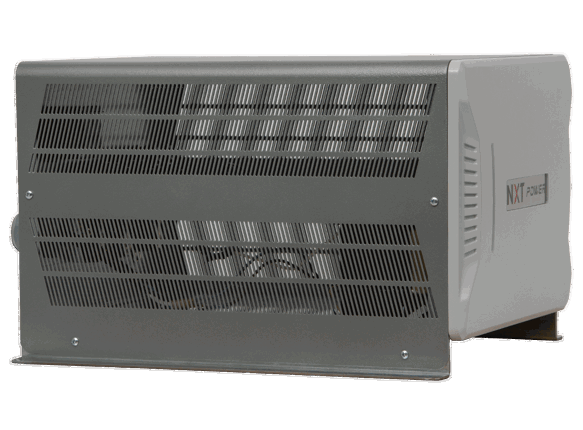

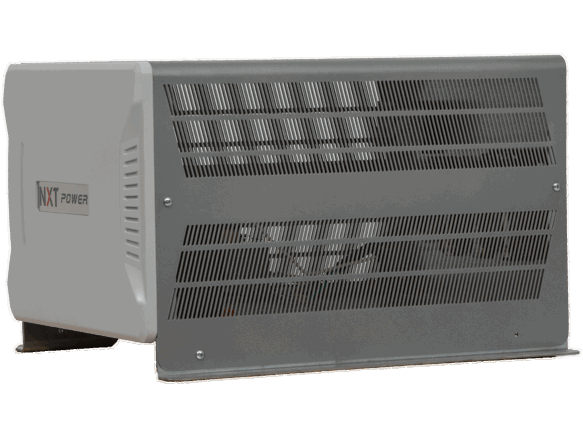

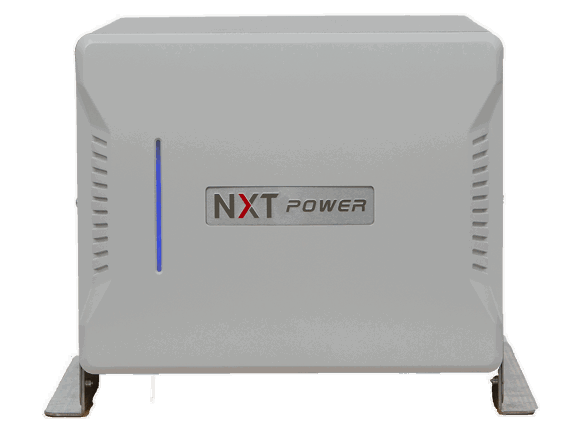

NXT Power Integrity Single-Phase Power Conditioner NXT Power Integrity Single-Phase Power Conditioner NXT Power Integrity Single-Phase Power Conditioner NXT Power Integrity Single-Phase Power Conditioner NXT Power Integrity Single-Phase Power Conditioner Front and Side View - NXT Power Integrity Single-Phase Power Conditioner Side View - NXT Power Integrity Single-Phase Power Conditioner Side View - NXT Power Integrity Single-Phase Power Conditioner Back and Side View - NXT Power Integrity Single-Phase Power Conditioner Back View - NXT Power Integrity Single-Phase Power Conditioner Back View - NXT Power Integrity Single-Phase Power Conditioner Back View - NXT Power Integrity Single-Phase Power Conditioner Back and Side View - NXT Power Integrity Single-Phase Power Conditioner Back and Side View - NXT Power Integrity Single-Phase Power Conditioner Side View - NXT Power Integrity Single-Phase Power Conditioner Front and Side View - NXT Power Integrity Single-Phase Power Conditioner NXT Power Integrity Single-Phase Power Conditioner NXT Power Integrity Single-Phase Power Conditioner
Slide left and right to view different angles.

Integrity Single-Phase 2-7 kVA Model North American Specs

Model # Input Voltage AC~ Output Voltage AC~ Maximum Load Rating (AMPS) Maximum Power (VA) Frequency (HZ) Case Size (IN) Ship Weight (LBS)
NPT2000-X-NS 208 or 240 208, 240/120 9.6 2000 60 11.25 x 14.65 x 18.1 -
NPT2300-NS 208 or 240 240/120 9.6 2300 60 11.25 x 14.65 x 18.1 -
NPT2500-X-NS 208 or 240 208, 240/120 12.0 2500 60 11.25 x 14.65 x 18.1 -
NPT2800-NS 208 or 240 240/120 12.0 2800 60 11.25 x 14.65 x 18.1 -
NPT3000-X-NS 208 or 240 208, 240/120 14.4 3000 60 11.25 x 14.65 x 18.1 -
NPT3300-X-NS 208 or 240 208, 240/120 16.0 3300 60 11.25 x 14.65 x 18.1 -
NPT3500-NS 208 or 240 240.120 14.4 3500 60 11.25 x 14.65 x 18.1 -
NPT3800-NS 208 or 240 240/120 16.0 3800 60 11.25 x 14.65 x 18.1 -
NPT5000-X-NS 208 or 240 208, 240/120 24.0 5000 60 11.25 x 14.65 x 18.1 -
NPT5800-NS 208 or 240 240/120 24.0 5800 60 11.25 x 14.65 x 18.1 -
NPT6000-H-NS 208 or 240 208, 240/120 29.0 6000 60 11.25 x 14.65 x 18.1 -
NPT7000-H-NS 208 or 240 240/120 29.0 7000 60 11.25 x 14.65 x 18.1 -

Fully Conditioned Power for Mid-Sized Electronic Systems

The Single-Phase Power Conditioner is designed to power diagnostic systems, analytical instrumentation, semi-conductor processing equipment, computer-controlled equipment, and other small-to-mid range electrical systems in need of advanced power protection. With extremely low output impedance and outstanding load regulation and inrush current capability, this power conditioner is ideal for supporting modern computer loads and eliminating oversizing.

  • Provides clean power at 208 or 240 VAC input and 208/240/120 VAC output for loads up to 29 amps.
  • Allows less than 10 volts to pass through the device in normal mode and less than 0.5 volts neutral-to-ground when tested to ANSI/IEEE C62.41, category A & B.
  • Diverse input and output voltage selections
  • Includes NXT Power 5-year warranty
A technician stands in a warehouse overlooking machinery

Industries & Applications

The Single-Phase power conditioner is built to power small or mid-range computer systems, mass spectrometers, analytical instrumentation, and other critical electronic systems in industrial or scientific settings.

Upgrade Your Power Quality

NXT Power manufactures the most advanced power conditioners available for small and mid-range computer systems and other equipment. Contact our team to learn more.
