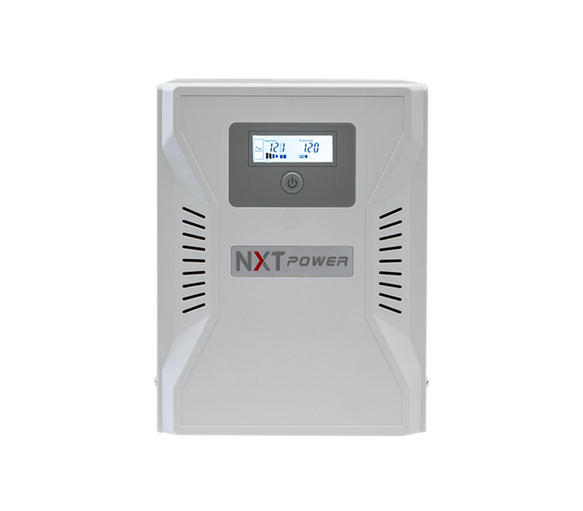

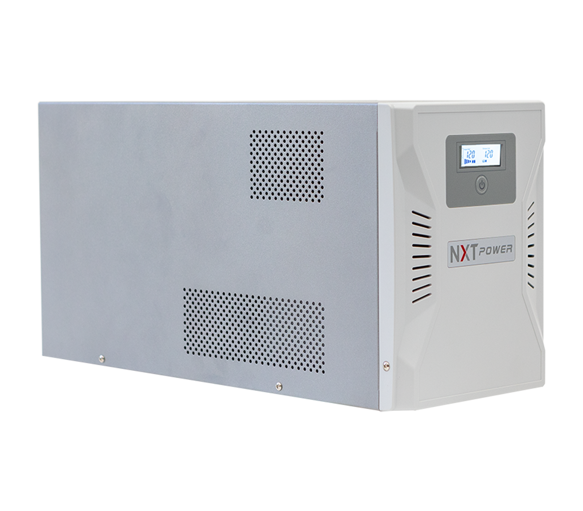

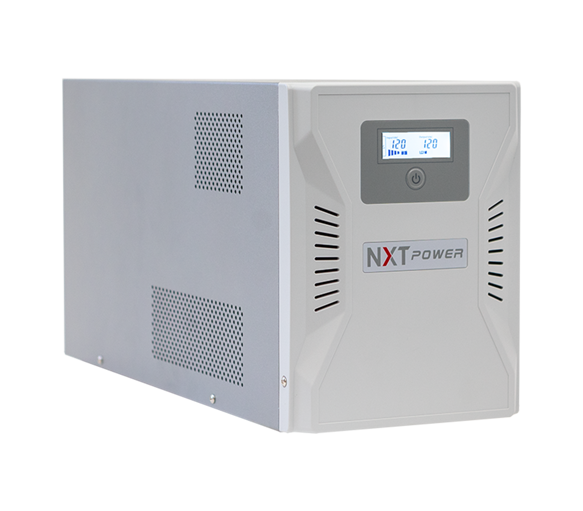

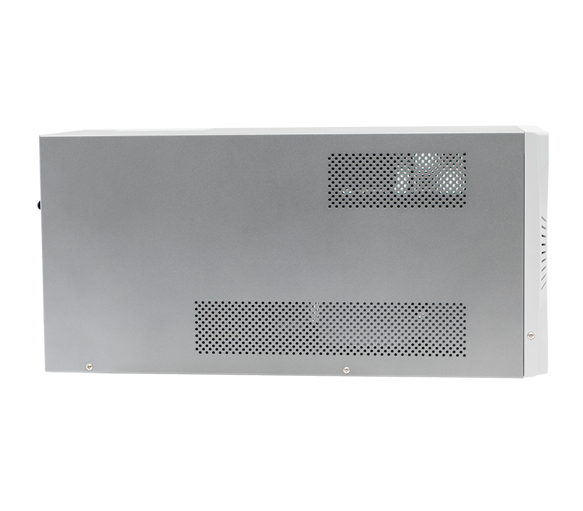

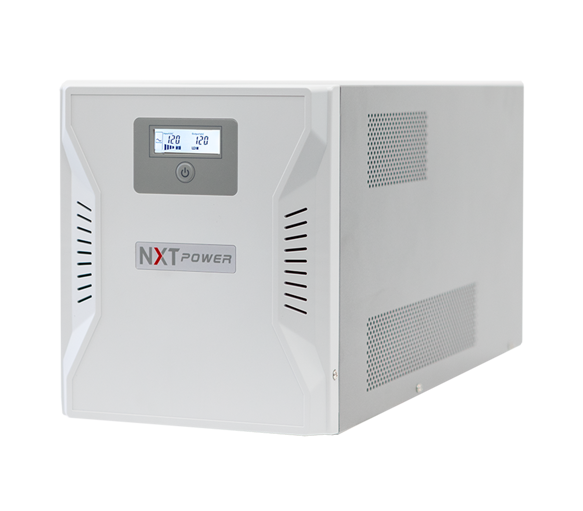

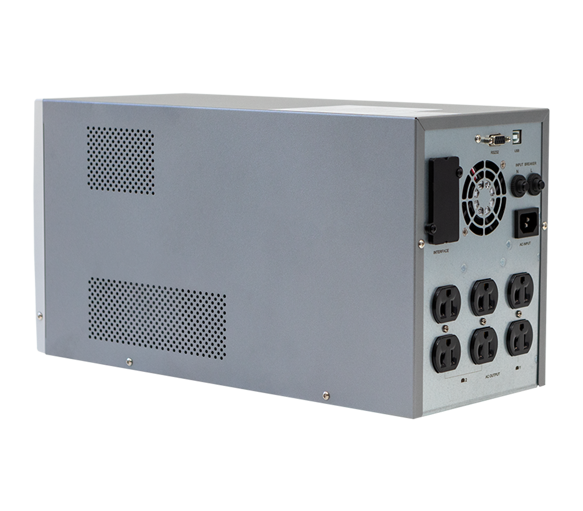

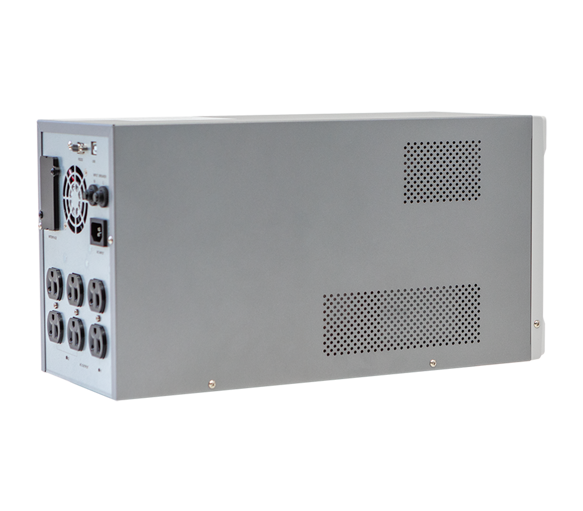

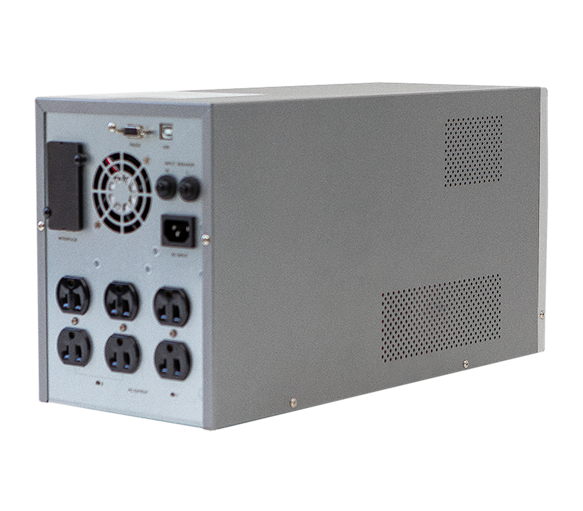

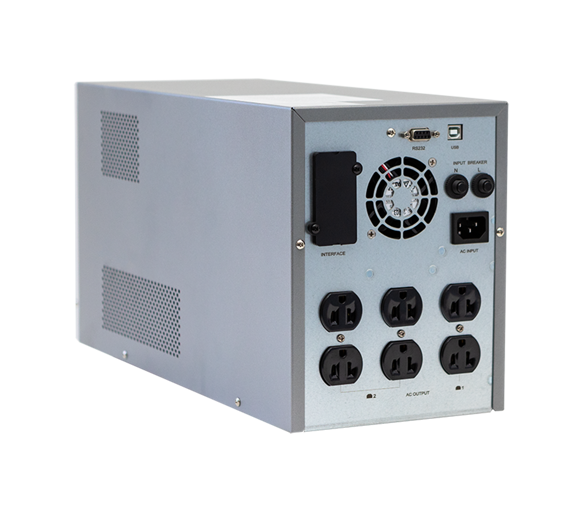

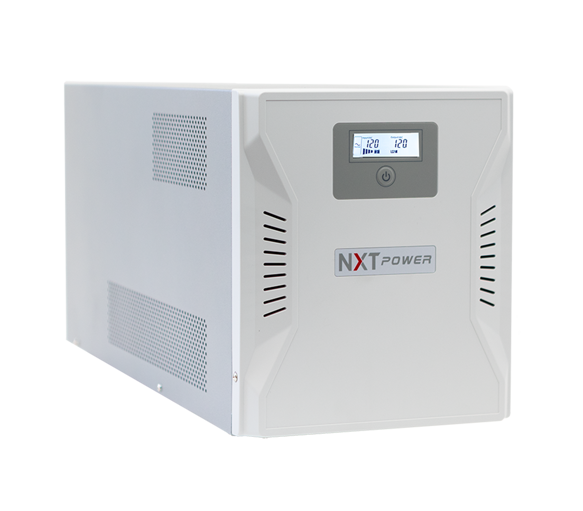

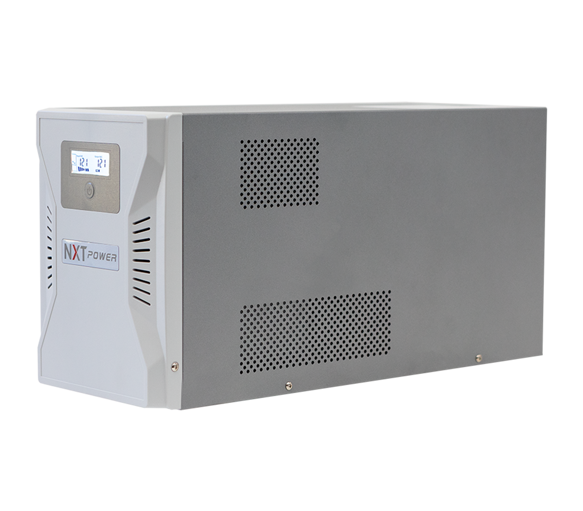

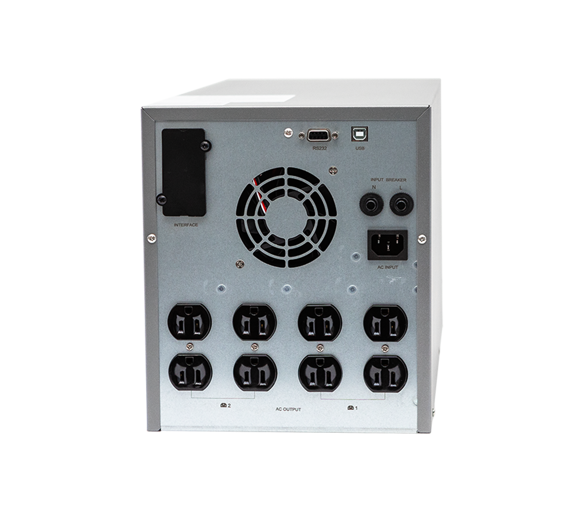

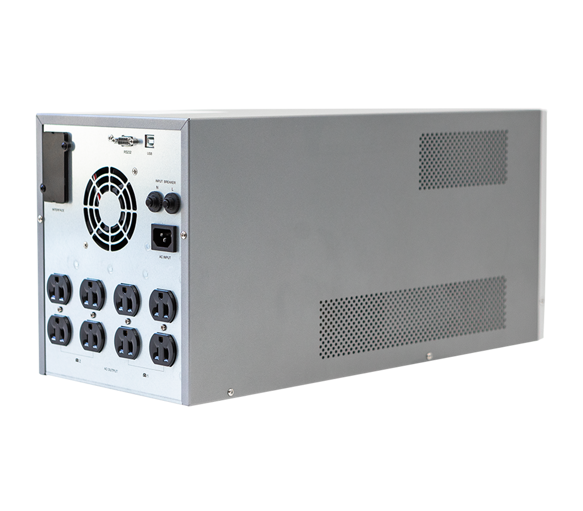

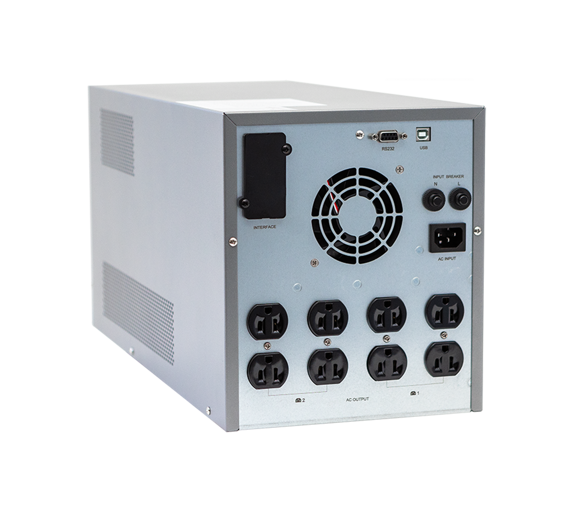

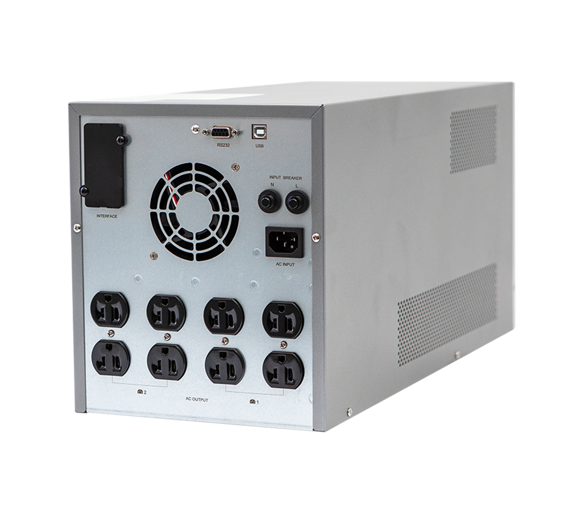

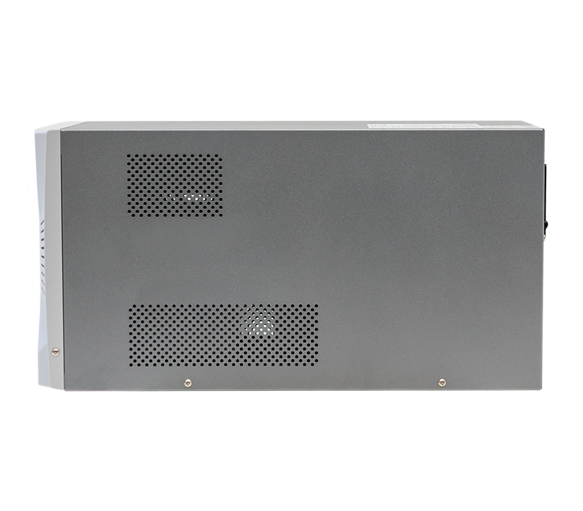

Integrity Pro® UPS Series Standard Line
Power Protection at its Best
Our Integrity Pro® UPS is designed from the ground up to incorporate itself flawlessly and reliably into various office and I.T. environments.
Integrity Pro® UPS Series Standard Line North American Specs
| Model # | Input Voltage AC~ | Output Voltage AC~ | Maximum Load Rating (AMPS) | Maximum Power (VA) | Frequency (HZ) | Case Size (IN) | Ship Weight (LBS) |
|---|---|---|---|---|---|---|---|
| NPTU600-LM-N | 120 | 120 | 5.0 | 600 | 60 | 9.3 x 7.0 x 17.7 | 55 |
| NPTU800-GL-N | 120 | 120 | 6.66 | 800 | 60 | 9.3 x 7.0 x 17.7 | 55 |
| NPTU1100-LM-N | 120 | 120 | 9.17 | 1100 | 60 | 10.0 x 8.7 x 20.7 | 94 |
| NPTU1500-LM-N | 120 | 120 | 12.0 | 1440 | 60 | 10.0 x 8.7 x 20.7 | 94 |
Integrity Pro® UPS Series Standard Line International Specs
| Model # | Input Voltage AC~ | Output Voltage AC~ | Maximum Load Rating (AMPS) | Maximum Power (VA) | Frequency (HZ) | Case Size (CM) | Ship Weight (KG) |
|---|---|---|---|---|---|---|---|
| NPYU1500-LM-i | 230 | 230 | 6.26 | 1440 | 50/60 | 25.4 x 22.0 x 52.5 | 43 |
POWER QUALITY YOU CAN RELY ON
Its sleek design is specifically envisioned for desktop applications and devices that are used within various environments. Engineered with a low-impedance isolation transformer, surge diverter, and noise filter, the
UPS is designed to deliver fully conditioned power to prevent electrical noise, spikes, and transients before they can damage or degrade your equipment. Each unit meets the safety requirements of UL 1778.
- Low-impedance isolation transformer and line-interactive operation
- Enjoy peace of mind knowing your equipment is protected from problems due to common-mode voltage, power outages, spikes, and transients
- Each unit meets the safety requirements of UL 1778.
- Includes NXT Power Full 3-Year Warranty
Product Documentation
- Integrity Pro® Standard UPS Fact Sheet (PDF)
- Integrity Pro® User Manual (PDF)
- Integrity Pro® Battery Procedure (PDF)
- Integrity Pro® 600-800VA Specs (PDF)
- Integrity Pro® 1100-1500VA Specs (PDF)
- Integrity Pro® 1500VA Standard Specs (PDF)
- SNMP Information Sheet (PDF)
- Integrity Pro® SNMP User Manual (PDF)
- USB Monitoring Shutdown Manual (PDF)
- Integrity Pro® Seismic Instructions (PDF)
- Warranty (PDF)
- Quality Policy Certificate (PDF)
