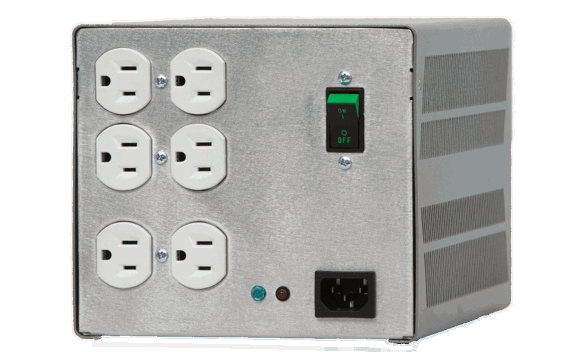

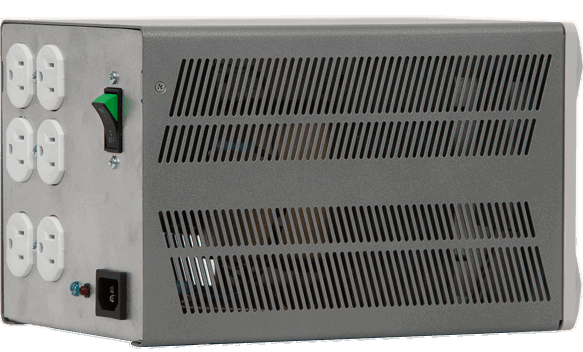

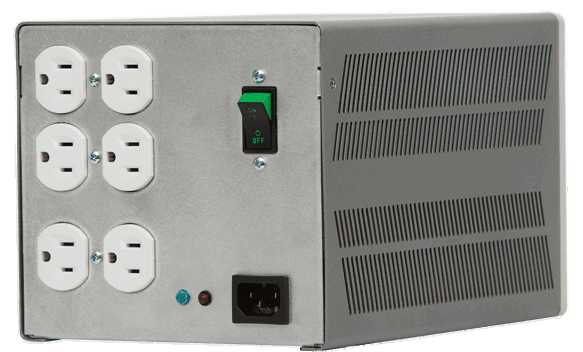

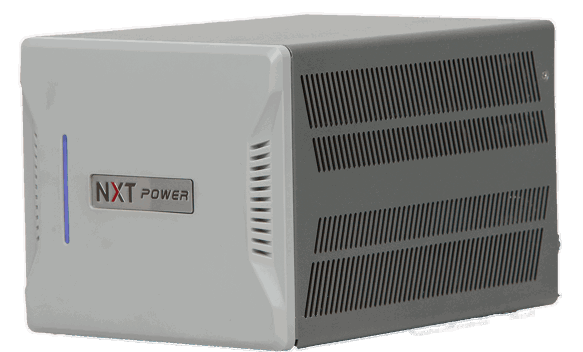

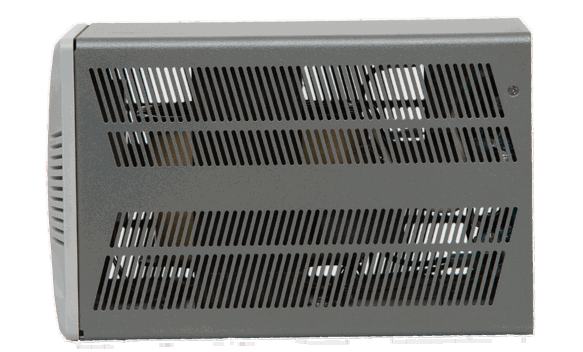

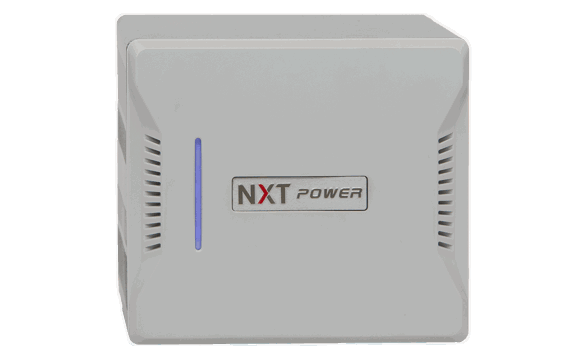

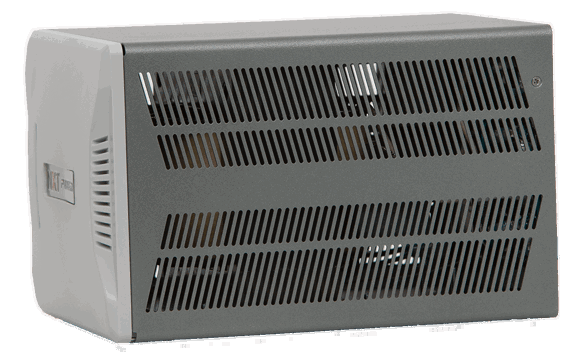

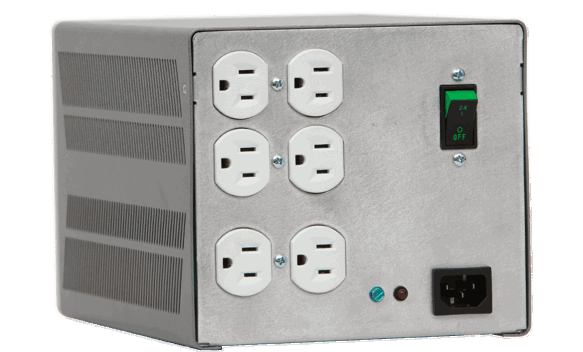

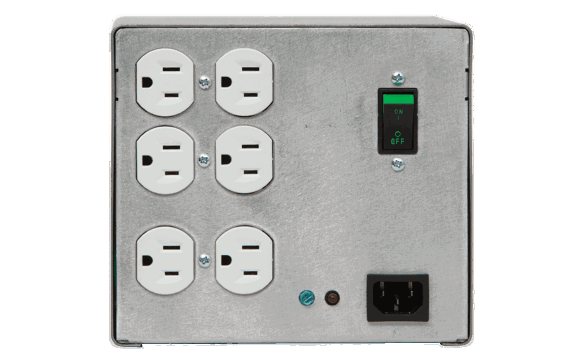

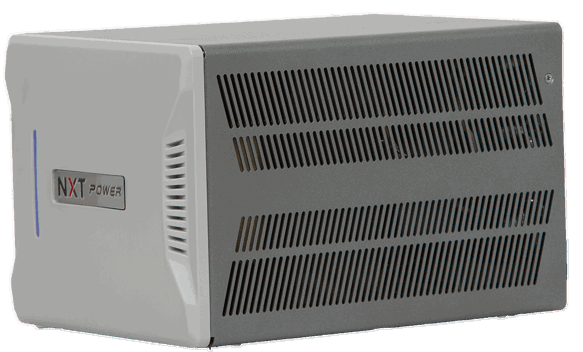

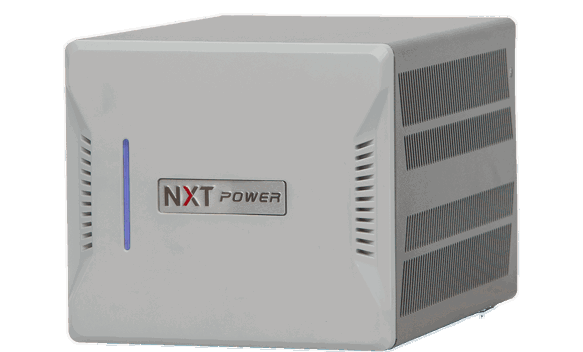

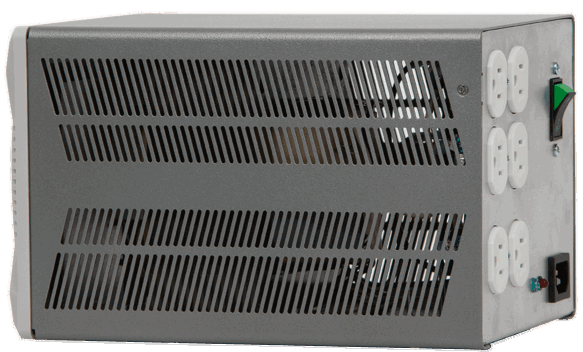

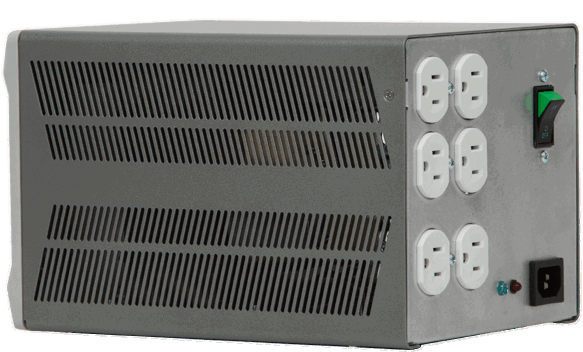

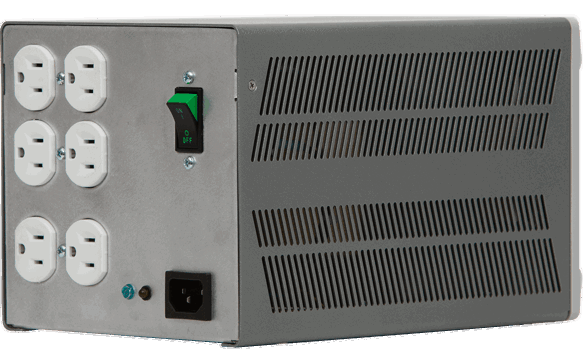

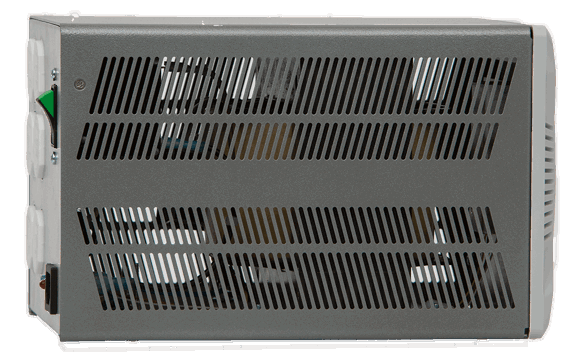

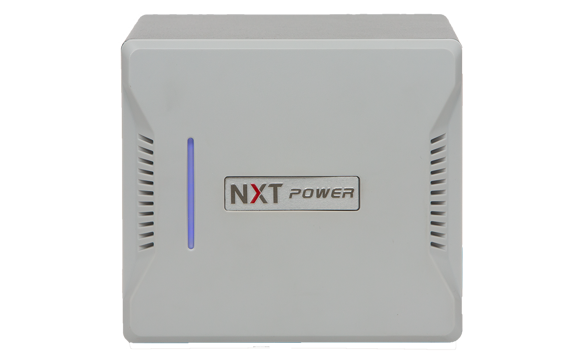

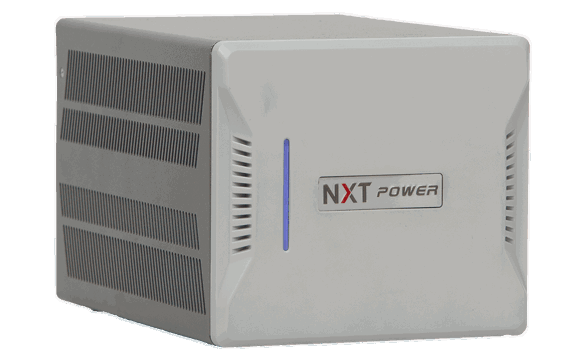

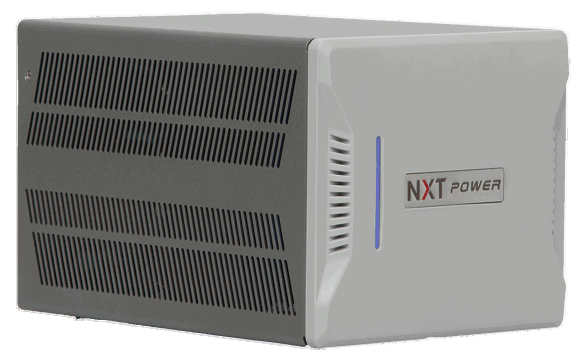

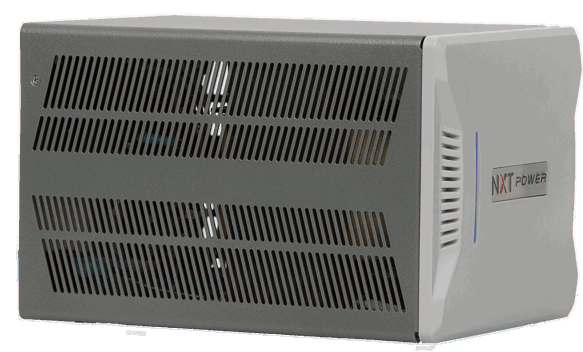

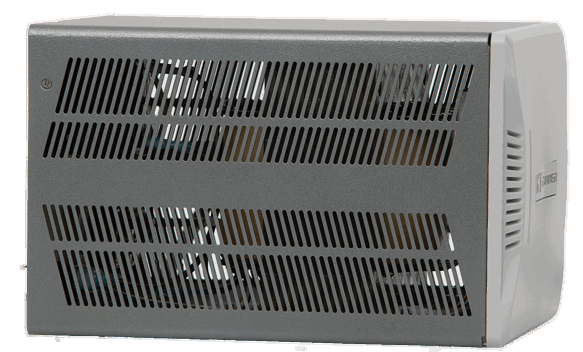

Integrity 600-1000 VA Model
Superior Power Protection.
The Integrity Standard 600-1000 VA power conditioner supplies clean, fully conditioned power to microprocessor-based electronic devices and electronic systems. Perfect for applications requiring up to 1000 VA of power, such as ATMs, bench-top diagnostic systems, and simulators.
Integrity 600-1000 VA Model North American Specs
| Model # | Input Voltage AC~ | Output Voltage AC~ | Maximum Load Rating (AMPS) | Maximum Power (VA) | Frequency (HZ) | Case Size (IN) | Ship Weight (LBS) |
|---|---|---|---|---|---|---|---|
| NPT600-N | 120 | 120 | 5.0 | 600 | 60 | 6.5 x 7.0 x 9.75 | 20 |
| NPT720-N | 120 | 120 | 6.0 | 720 | 60 | 6.5 x 7.0 x 9.75 | 21 |
| NPT840-N | 120 | 120 | 7.0 | 840 | 60 | 6.5 x 7.0 x 9.75 | 25 |
| NPT1000-N | 120 | 120 | 8.3 | 1000 | 60 | 6.5 x 7.0 x 9.75 | 28 |
Integrity 600-1000 VA Model International Specs
| Model # | Input Voltage AC~ | Output Voltage AC~ | Maximum Load Rating (AMPS) | Maximum Power (VA) | Frequency (HZ) | Case Size (CM) | Ship Weight (KG) |
|---|---|---|---|---|---|---|---|
| NPT780-i | 200-240 | 200-240 | 3.25 | 780 | 50/60 | 16.51 x 17.78 x 24.76 | 12.24 |
| NPT1000-i | 200-240 | 200-240 | 4.10 | 1000 | 50/60 | 16.51 x 17.78 x 24.76 | 14.06 |
| NPT1200-i | 200-240 | 200-240 | 5.4 | 1200 | 50/60 | 23.49 x 26.67 x 32.38 | 15.42 |
Protect Equipment from Common Power Problems
Integrity Standard power conditioners supply electronics and computer systems with fully conditioned power and protects them from hardware damage and power problems like common-mode voltage and spikes and transients.
The Integrity series combines surge diversion with a highly effective low-impedance isolation transformer and noise filtering to bring you the cleanest and most conditioned power available. Let through voltage is less than 10 volts in normal mode and less than 0.5 volts neutral-to-ground when tested to ANSI/IEEE C62.41, category A & B.
Includes NXT Power 5-year warranty.
Product Documentation
- Integrity Standard Fact Sheet (PDF)
- Integrity Standard User Manual (PDF)
- Integrity Domestic Domestic Technical Specifications (PDF)
- Integrity Standard International Technical Specifications (PDF)
- Wall Mount Dimensions (PDF)
- Warranty (PDF)
- Quality Policy Certificate (PDF)
Product Support
Industries & Applications
The 600-1000 VA Model can provide clean and uninterrupted power to ATMs, bench-top diagnostic systems, simulators, and more. This model is ideal for powering lower-voltage microprocessor-based electronics in retail, restaurant, and scientific/clinical settings.
