Integrity Medical 600-1000 VA Model

Power Quality You Can Rely On.

The 600-1000 VA model supplies clean and conditioned power to microprocessor-based electronic devices such as patient monitors, imaging equipment, and instrumentation in medical and clinical environments. Meets IEC60601 and UL60601 safety requirements.

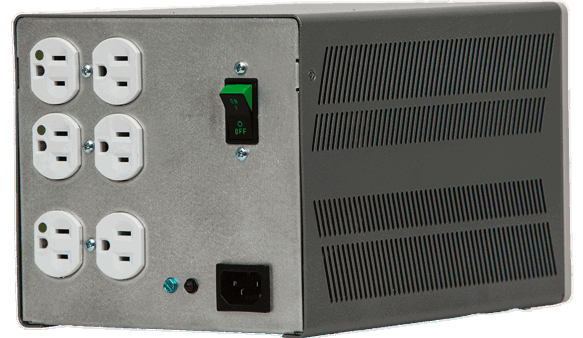

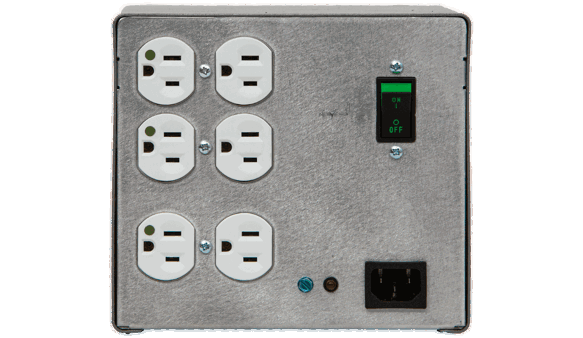

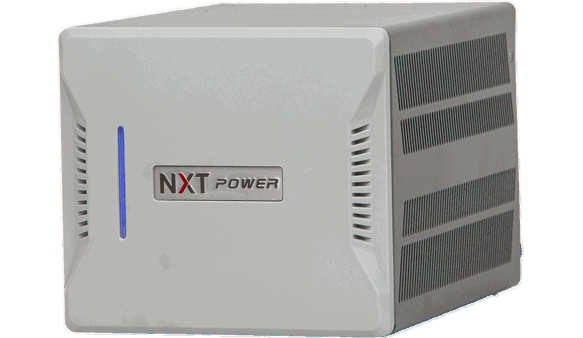

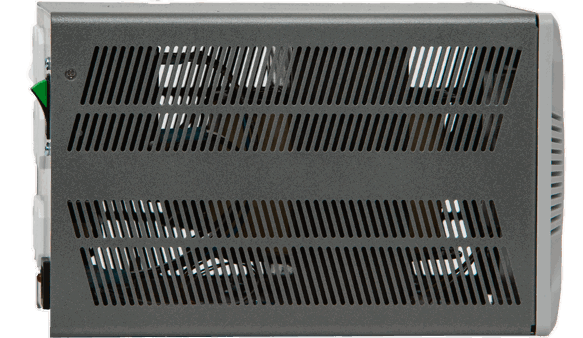

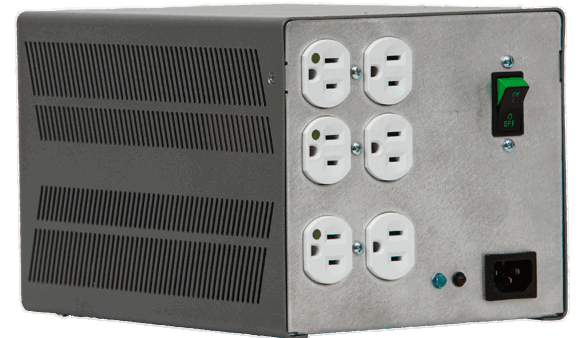

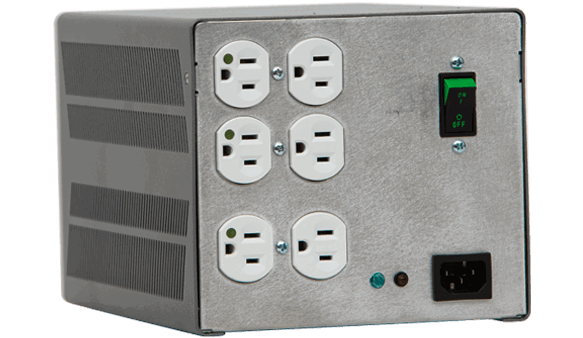

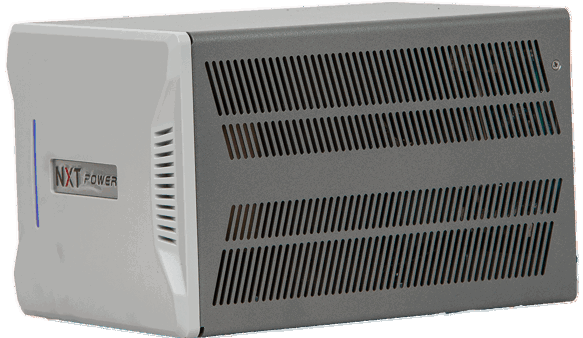

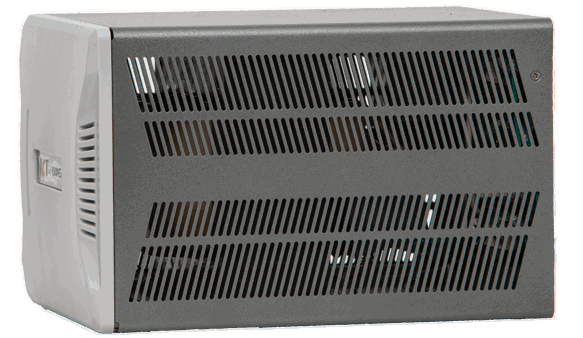

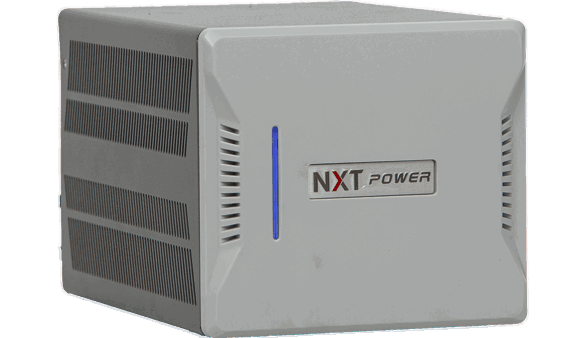

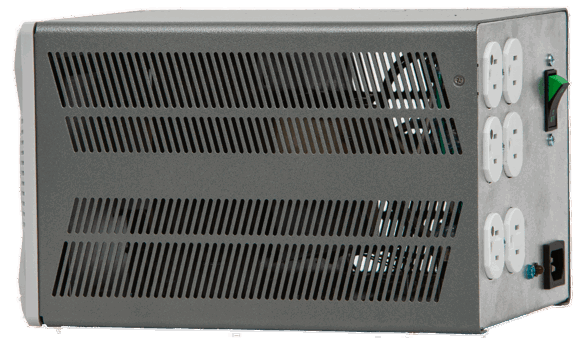

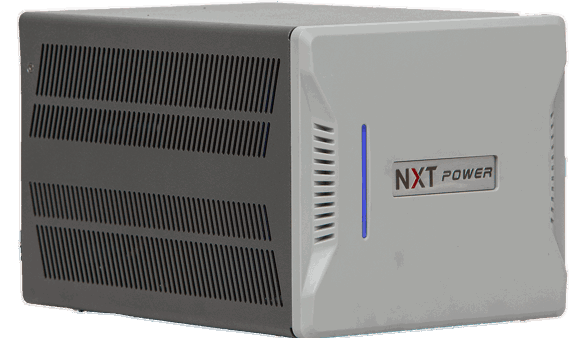

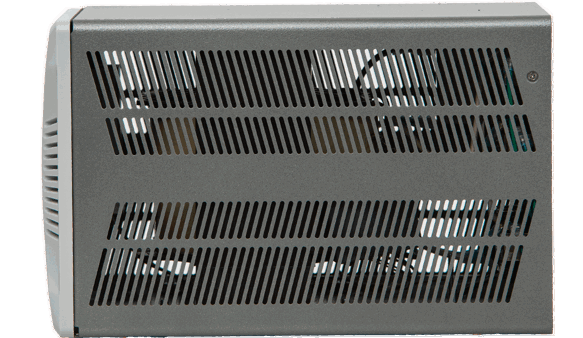

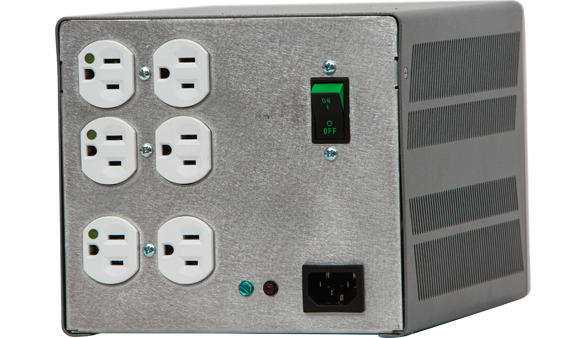

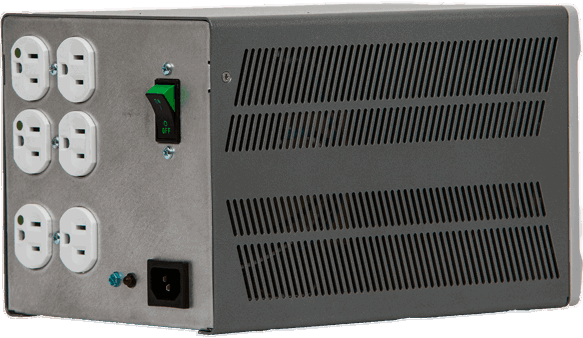

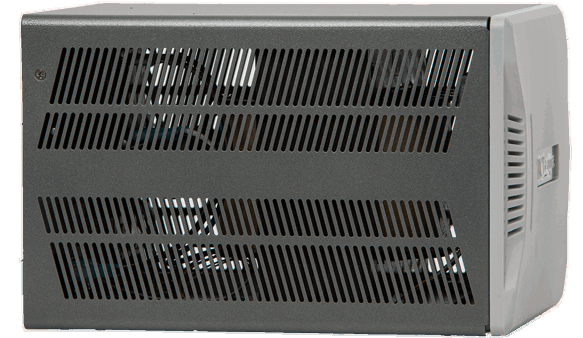

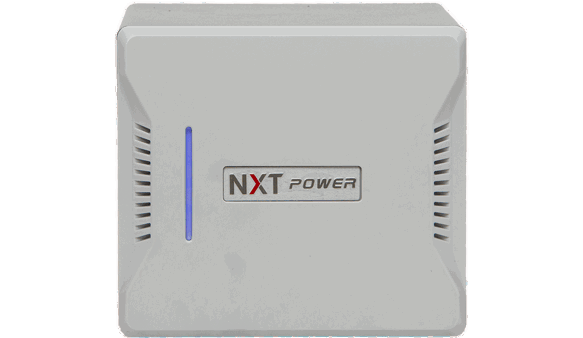

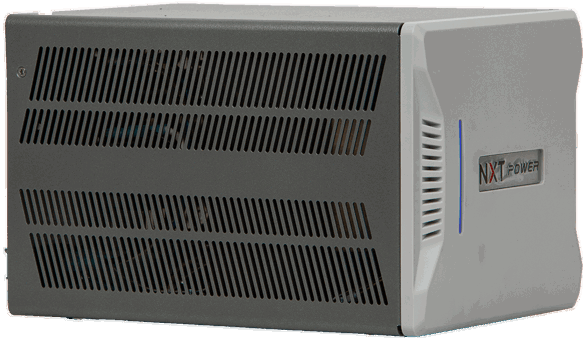

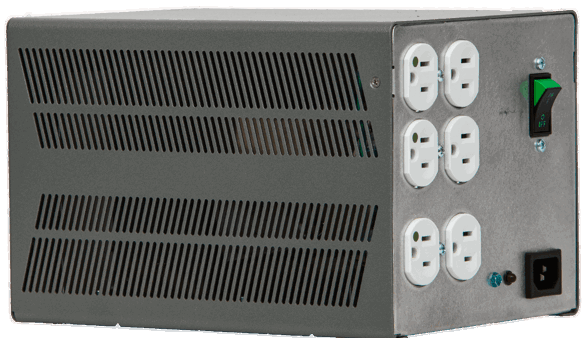

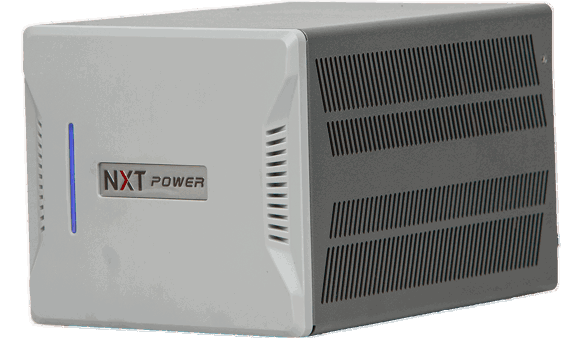

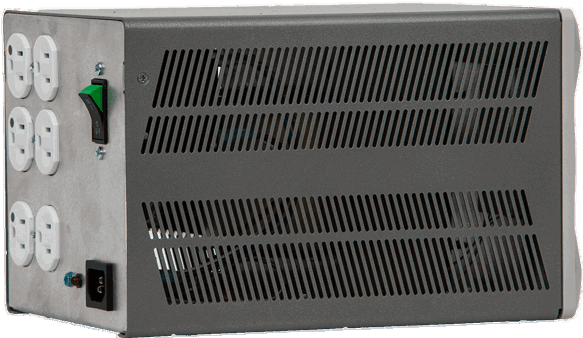

NXT Power Integrity Medical Power Conditioner NXT Power Integrity Medical Power Conditioner NXT Power Integrity Medical Power Conditioner NXT Power Integrity Medical Power Conditioner Side View - NXT Power Integrity Medical Power Conditioner Side View - NXT Power Integrity Medical Power Conditioner Side and Back View - NXT Power Integrity Medical Power Conditioner Back View - NXT Power Integrity Medical Power Conditioner Back View - NXT Power Integrity Medical Power Conditioner Back View - NXT Power Integrity Medical Power Conditioner Back View - NXT Power Integrity Medical Power Conditioner Back View - NXT Power Integrity Medical Power Conditioner Side and Back View - NXT Power Integrity Medical Power Conditioner Back and Side View - NXT Power Integrity Medical Power Conditioner Side and Back View - NXT Power Integrity Medical Power Conditioner Side View - NXT Power Integrity Medical Power Conditioner Side View - NXT Power Integrity Medical Power Conditioner Side and Front View - NXT Power Integrity Medical Power Conditioner NXT Power Integrity Medical Power Conditioner NXT Power Integrity Medical Power Conditioner
Slide left and right to view different angles.

Integrity Medical 600-1000 VA Model North American Specs

Model # Input Voltage AC~ Output Voltage AC~ Maximum Load Rating (AMPS) Maximum Power (VA) Frequency (HZ) Case Size (IN) Ship Weight (LBS)
NPT600-M-N 120 120 5.0 600 60 6.5 x 7.0 x 9.75 12
NPT720-M-N 120 120 6.0 720 60 6.5 x 7.0 x 9.75 25
NPT840-M-N 120 120 7.0 840 60 6.5 x 7.0 x 9.75 28
NPT1000-M-N 120 120 8.3 1000 60 6.5 x 7.0 x 9.75 30
NPT1200-M-N 120 120 10 1200 60 9.25 x 10.5 x 12.75 32

Integrity Medical 600-1000 VA Model International Specs

Model # Input Voltage AC~ Output Voltage AC~ Maximum Load Rating (AMPS) Maximum Power (VA) Frequency (HZ) Case Size (CM) Ship Weight (KG)
NPT780-M-i 200-240 200-240 3.25 780 50/60 16.51 x 17.78 x 24.76 12.24
NPT1000-M-i 200-240 200-240 4.10 1000 50/60 16.51 x 17.78 x 24.76 14.06
NPT1200-M-i 200-240 200-240 5.4 1200 50/60 23.49 x 26.67 x 32.38 15.42

Power Protection That Won't Let You Down

Integrity Medical power conditioners are built to protect electronic systems within the patient vicinity and meet the safety requirements of IEC60601 to deliver clean, conditioned power that keeps both people and critical medical systems safe. The 600-1000 VA Model offers a low impedance isolation transformer, surge diverter, and power line filter to prevent damage before it occurs.

  • Let through voltage is less than 10 volts normal mode and less than 0.5 volts neutral-to-ground when tested to ANSI/IEEE C62.41.
  • Leakage current is less than 300 μA.
  • All North American models offer hospital-grade plugs and receptacles.
  • Conforms to UL60601 and IEC60601 safety requirements
  • Includes NXT Power 5-year warranty

Industries & Applications

Keep patients safe and protect sensitive electronic devices such as patient monitors, imaging equipment, and other medical instrumentation that must meet IEC60601 and UL60601 standards.
