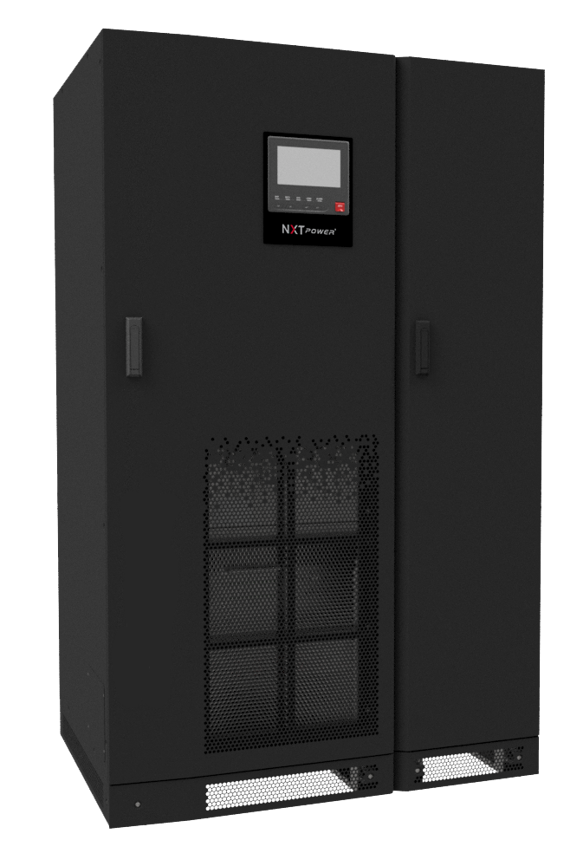

Vanguard Three-Phase UPS 80-200 kVA Model

Unparalleled Industrial Power Protection

Our NXT Power Vanguard 80-200kVA Three-Phase UPS is a true online double conversion UPS. It is specifically designed to handle the higher power needs of mission-critical loads. Providing maximized uptime with clean and uninterrupted power for your mission-critical applications with industry-leading efficiency, durability, and performance.

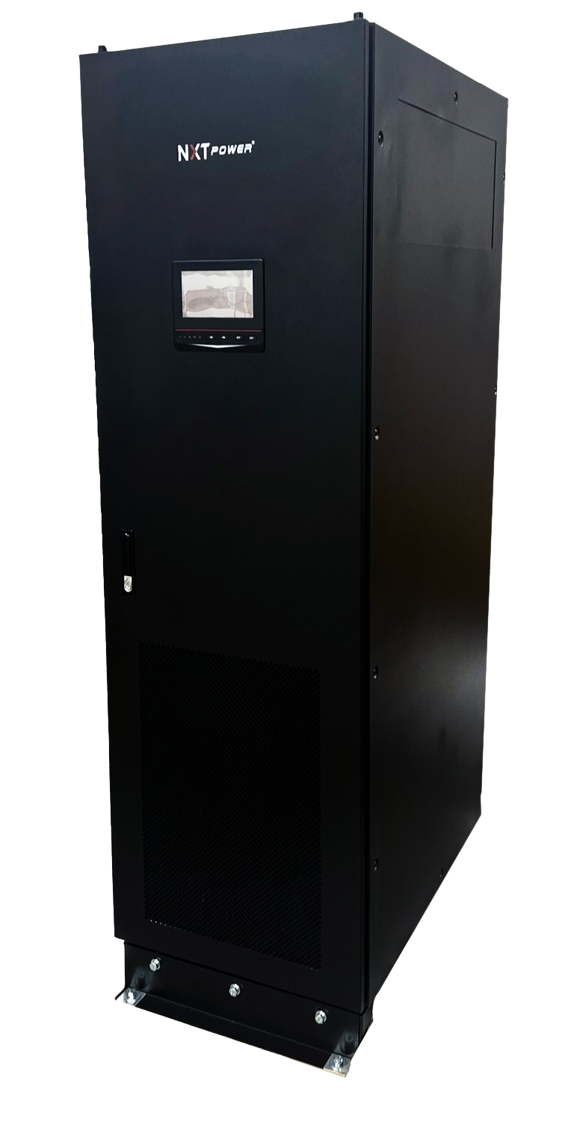

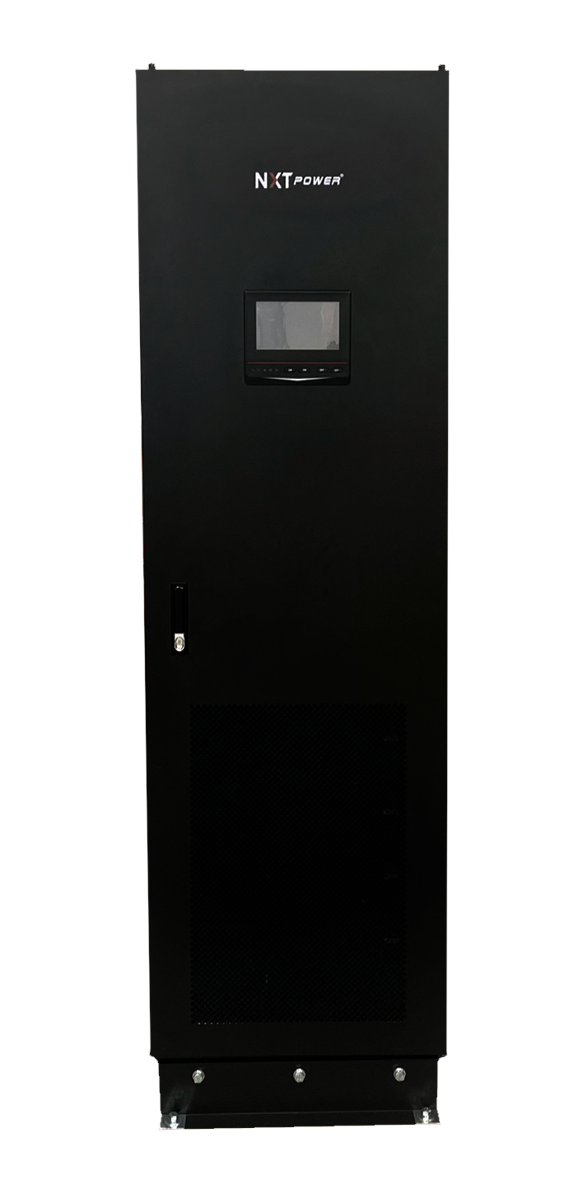

Slide left and right to view different angles.

Vanguard Three-Phase UPS 80-200 kVA Model North American Specs

Model # Input Voltage AC~ Output Voltage AC~ Maximum Load Rating (AMPS) Maximum Power (VA) Frequency (HZ) Case Size (IN) Ship Weight (LBS)
NPU 80.0 480V 208/120V 96 80,000 50/60 70.98 x 27.65 x 32.07 991
NPU 100.0 480V 208/120V 120 100,000 50/60 70.98 x 27.65 x 32.07 991
NPU 125.0 480V 208/120V 150 125,000 50/60 70.98 x 27.65 x 32.07 991
NPU 160.0 480V 208/120V 192 160,000 50/60 70.98 x 27.65 x 32.07 1268
NPU 200.0 480V 208/120V 240 200,000 50/60 70.98 x 27.65 x 32.07 1268

Efficient Industrial Power Protection

The NXT Power Vanguard 80-200kVA Three-Phase UPS boasts an automatic transfer to battery power in the event of an AC power failure, ensuring an uninterrupted power supply for the duration you choose. Once power is restored, the UPS will recharge its batteries for future use.

This model also features a 3-level switching rectifier and inverter, reducing its impact on the local power supply and simplifying installation in areas with limited power capacity. Additionally, the NXT Power Vanguard 80-200kVA Three-Phase UPS acts as a high-performance filter, safeguarding its power sources from any harmonics and reactive power produced by connected loads.

The NXT Power Vanguard 80-200kVA Three-Phase UPS provides:

  • Built-in Power Quality Metering
  • Advanced Touchscreen Display
  • Low input current distortion— <= 3%
  • High input power factor 0.99
  • Power walk-in function that ensures progressive rectifier start-up
  • Delayed start-up phased with the return of mains power supply when several UPS are connected in the system.
  • High energy efficiency, ≥ 96% at full load.
  • A Full Two-Year On-site Warranty

For added convenience, this UPS can be powered by two separate sources: the main power and a second bypass source.

Industries & Applications

The NXT Power Vanguard 80-200kVA Three-Phase UPS systems are specifically designed to handle the power needs of mission-critical loads the perfect choice for applications such as data centers, large networks, and light industrial sites where even a momentary power outage can cause significant disruption and damage.
